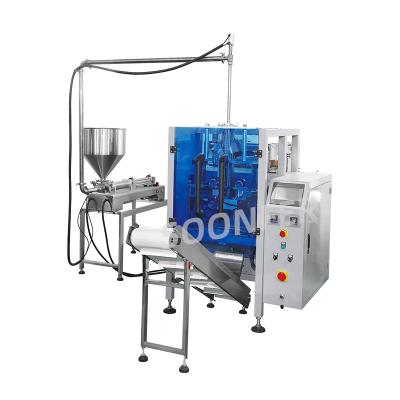

Fully automatic small sachet bag tomato paste ketchup chili sauce filling packing machine
Application of large liquid packing machine
Widely applied for food, medicine, hand sanitizer chemical liquid products such as ketchup, flavoring, sauce, pasty, shampoo, cream, body wash liquid and so on.
Specification of large liquid packing machine
Model
SF-420LY
Film width
Max.420mm
Bag length
80-300mm
Bag width
60-200mm
Filling range
150-1500ml
Film thickness
0.04-0.08mm
Roll diameter
Max.320mm
Packing speed
5-60bags/min
Power
220V, 50/60Hz, 2.2KVA
Machine size
(L)1217*(W)1015*(H)1343mm
Machine weight
650kg
Features of large liquid packing machine
1.Brand new design with bright appearance, reasonable structure and advanced technology.
2.Digital screen display with numerical setting and flexible operation.
3.Imported PLC control system and color touching screen enable easy and efficient operation.
4. Imported servo film driving system and color sensor enable accurate position, beautiful packaging and excellent performance.
5. PID independent control of temperature, more suitable for different packaging material.
6. Multiple automatic alarming functions make the, loss to the minimum.
7. Dual encoders enable more stable performance.
8. Diversified bag-shaped provide pillow-shaped bags, standing bags, hanging bags, linking bags and etc.
9. Available with inflatable device enables broad application.
10. Equipped with a code system enables more credible packaging.
11. Automatic correct function and intelligent operation save time, labor and film.
12. External film placing makes simpler and easier installation of packing film.
13. Multipurpose packaging, suitable for various packaging to similar type of product.
