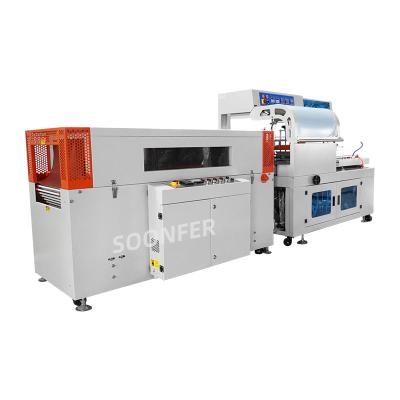

Fully automatic water bottle cup bath bomb plastic heat tunnel shrink wrapping packing machine
Application of heat shrink wrapping machine
Fully automatic heat shrink packaging machine including one sealer and one shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
Specification of heat shrink wrapping machine
Voltage
380v, 50-60Hz
Power
9kw
Shrink furnace size(length*width*heigh)
1200x400x200mm
Product size (width*height)
220x110mm
Transfer speed
10-15m/min
Conveying material
Chain roller
Conveying load
10kg max
Machine size (length*width*height)
1600x560x660mm
Total Weight
80kg
Applicable shrink film
POE, PVC
Features of heat shrink wrapping machine
1. Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.
2. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. packing length can be detected by the sensor automatically.
3. The constant temperature heating sealing and cutting system can be used for sealing and cutting various industrial standard heat sealing films such as PE, PVC and POF.
4. Different products with different sizes can be packed together as promotional package.
5. The speed-adjustable front-end feeding system and the back-end storage work platform enable the whole machine to achieve high-speed and unmanned automatic operation.
