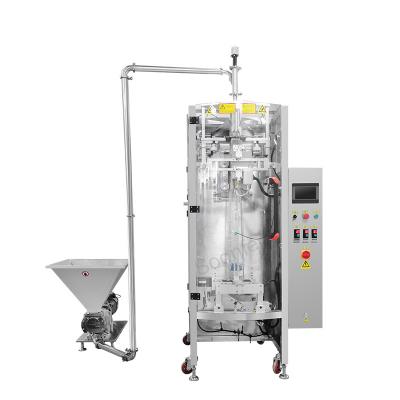

Automatic dipping bag tomato ginger garlic paste dipping curry pizza sauce packing machine
Application of sauce paste packing machine
This machine is suitable for automatic packaging of various liquid paste-like items in the food, chemical, daily chemical and other industries, such as: cream, mayonnaise, lotus paste, salad dressing, ketchup, jam, chocolate sauce, liquid cheese, etc.
Specification of sauce paste packing machine
Model
Bag type
Bag size
Measuring range
Film width
Packing speed
Gas source
Power
Weight
Dimension
SF-420LY
Back seal bag
L: 80-300mm; W: 80-150mm
500-1000g/bag
325mm(35 degree angle)
10-20bags/min
0.6-0.8Mpa, 30L/min
380V, 50Hz, 4.5kw
500kg
1820(L)*1950(W)*2200(H)mm
Features of sauce paste packing machine

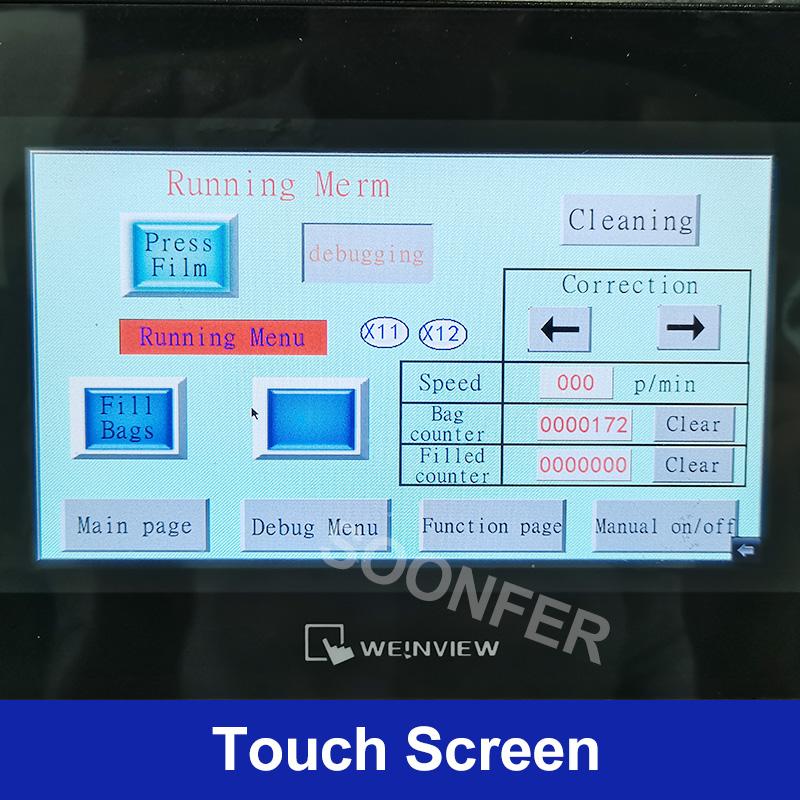

1. Touch film screen operation, support multiple languages, easy to use.
2. PLC computer control system, the operation is more stable, and any parameters can be adjusted without stopping the machine.
3. The servo motor is used for drawing and the positioning is more accurate.
4. Independent temperature control system, the accuracy can reach ±1℃.

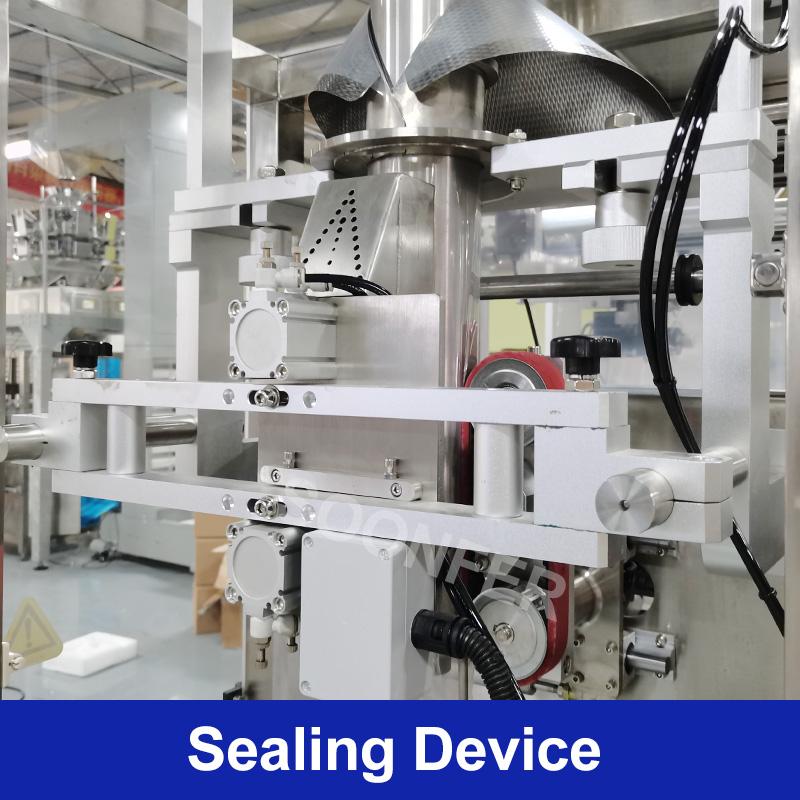

5. The horizontal and vertical sealing temperature are controlled independently, which can be well applied to various packaging materials such as PE composite film.
6. The packaging styles are diversified, such as back seal, gusset, continuous bag, punching, etc.
7. Bag making, sealing, packaging, and date printing can be completed at one time.
8. Clean working environment and low noise.
