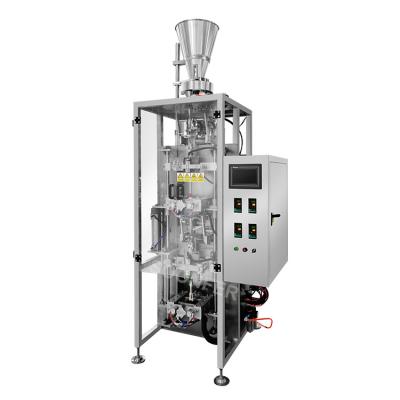

Fully automatic inner and outer green tea leaves sachet bag packaging packing machine
Application of tea stick bag packing machine
The machine can automatically make tea stick, suitable for green tea, black tea, oolong tea, dark tea, ginger tea, jasmine tea, rose tea, chamomile tea, scented tea, medicinal tea, barley tea, wolfberry, coffee, fruit tea and other granular materials.
Specification of tea stick bag packing machine
Model
SF-32S
Bag size
L: 30-140mm, W: 20-35mm
Bag type
Perforated inner bag and stick outer bag
Film thickness
0.04-0.12mm
Packing speed
20-40 bags/min
Machine size
1200(L)*1000(W)*2500(H)mm
Weight
850kg
Power
380V, 50Hz, 2kw
Feature of tea stick bag packing machine

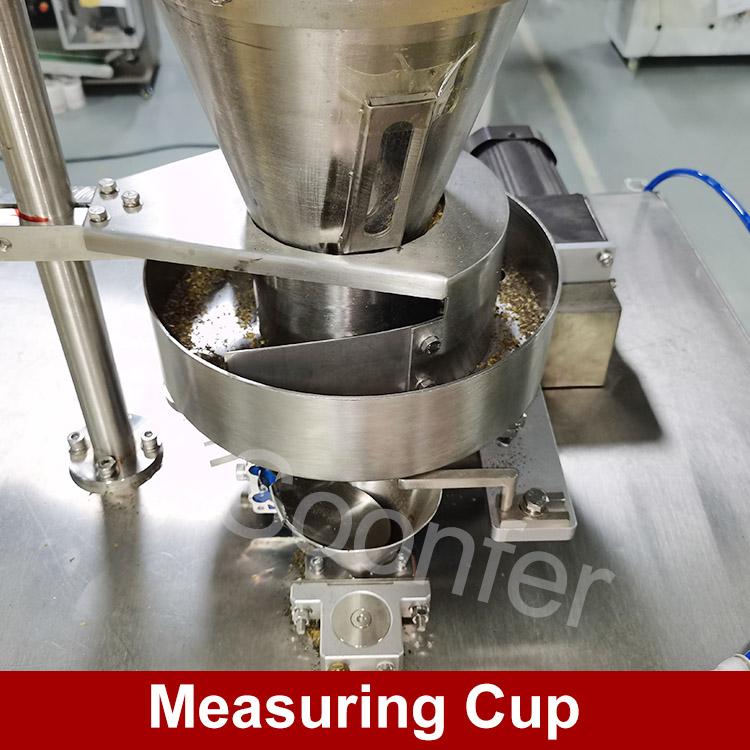

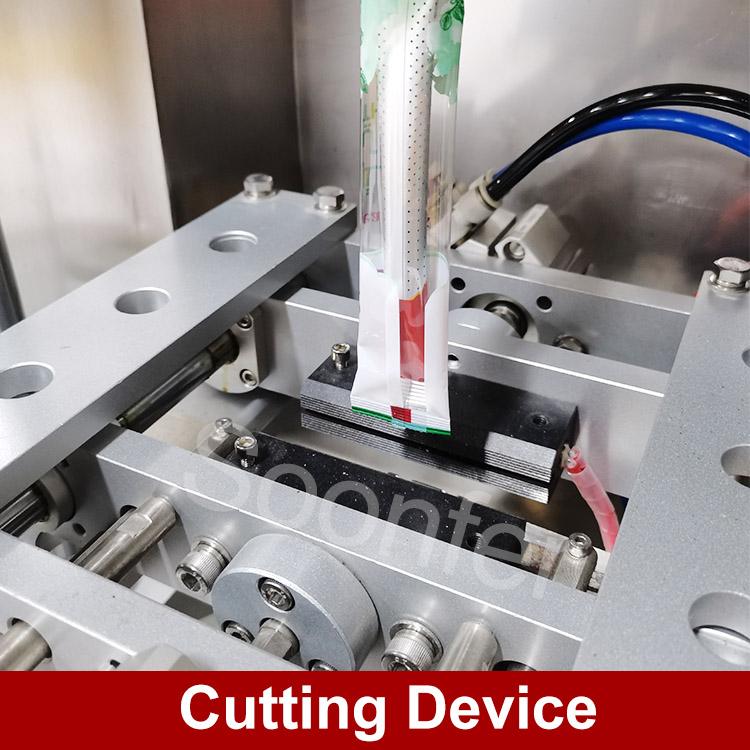

1. It has the function of auto filling, measuring, bag forming, sealing and cutting. Bag-making system adopts step motor with high precision(error is less than 1mm).

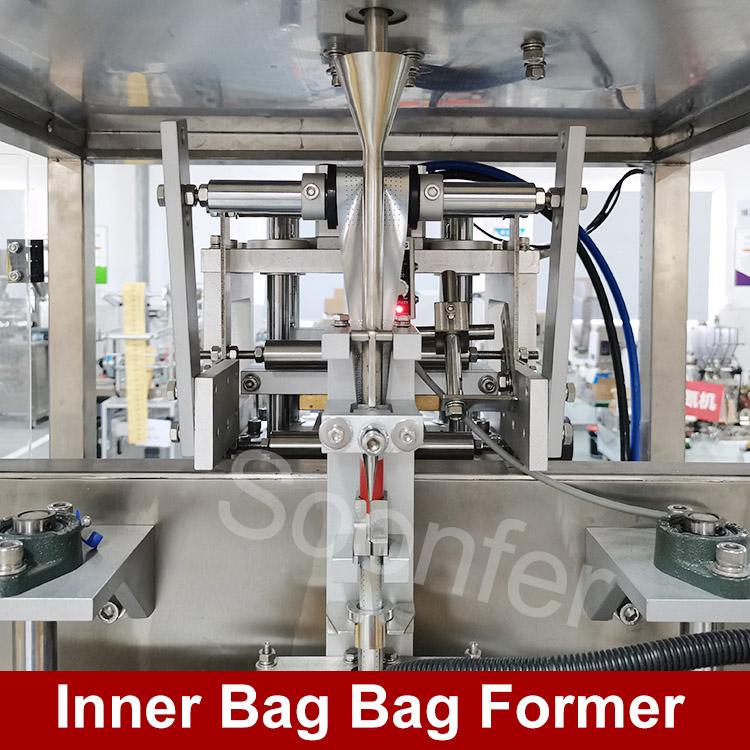

2. The machine can complete the production of inner and outer bags at the same time, and put the inner bag into the outer bag.
3. It has PLC control with stable biaxial high accuracy output and color touch screen. It supports multiple languages and can store multiple parameters.
4. To ensure the same length of each bag, high sensitive electro-optical sensor system is provide to realize automatic a lignment on the packing film.
5. Adopting new structure technology, the machine is sturdy and durable, and the maintenance is simple and convenient.
