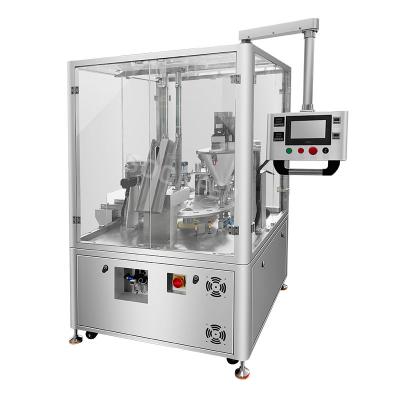

Automatic rotary nespresso coffee capsule k cup filling sealing machine
Application of coffee capsule filling machine
Automatic rotary coffee capsule K cup filling and sealing machine, suitable for ground coffee powder, instant coffee powder, milk powder, cocoa powder, tea powder, etc.
Specification of coffee capsule filling machine
|
Filling Heads Number |
1 head |
2 heads |
4 heads |
|
Production Capacity |
800-1400cups/hour |
1800-2400cups/hour |
4000-4800cups/hour |
|
Filling Range |
5-20g (Can be customized) |
||
|
Power |
220V, 50Hz, 1.5kw |
220V, 50Hz, 2.2kw |
220V, 50Hz, 4kw |
|
Machine Size |
1250(L)*1300(W)*1500(H) mm |
1500(L)*1300(W)*1700(H) mm |
2500(L)*1000(W)*1650(H) mm |
|
Machine Weight |
400kg |
500kg |
1000kg |
|
Air Supply |
1m/points, 0.6-0.75Mpa |
||
Features of coffee capsule filling machine
1. Use touch screen to set machine parameters, support multiple languages, and easy to operate.2. The filling volume and filling speed can be adjusted arbitrarily, and the filling accuracy is high.
3. Intelligent PLC control system ensures reliable operation of the machine.
4. PID independently controls the temperature, which is more suitable for different sealing film materials.
5. Multiple automatic alarm functions, no filling if there is no material, effectively reducing material loss.
6. New turntable design, small footprint, easy to detect and maintain.
