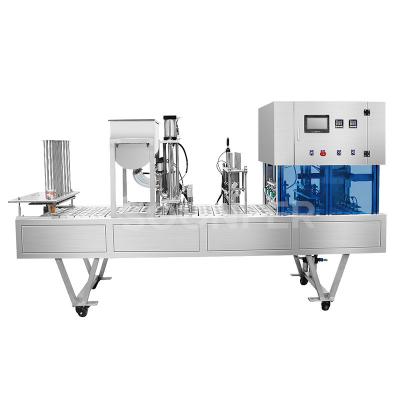

Automatic Chocolate Spread Peanut Butter Paste Cup Filling Sealing Machine
Automatic cup filling sealing machine
The automatic cup filling sealing machine is suitable for liquid products in food and daily necessities industry, such as ketchup, seasoning sauce, mayonnaise, barbecue sauce, chili sauce, tartar sauce, condensed milk, soy sauce, honey, juice, jam, jelly, yogurt, shampoo, hand sanitizer, shower gel, etc.
Specification of cup filling sealing machine
| Filling head number |
4 |
6 |
|
Filling range |
10-500ml (customizable) |
|
|
Filling speed |
3200-3600 cups/hour |
5200-5600 cups/hour |
|
Power |
220V/380V, 50/60Hz, 6kw |
|
| Air pressure | 0.6-0.8Mpa | |
|
Machine size |
2700(L)*800(W)*1600(H)mm |
3000(L)*900(W)*1600(H)mm |
|
Machine weight |
700kg |
800kg |
Features of cup filling sealing machine

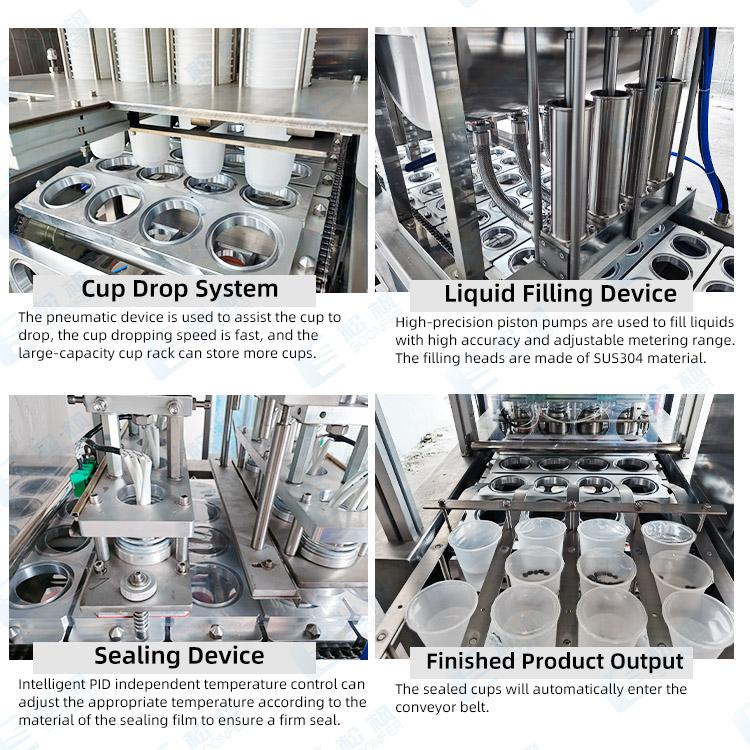

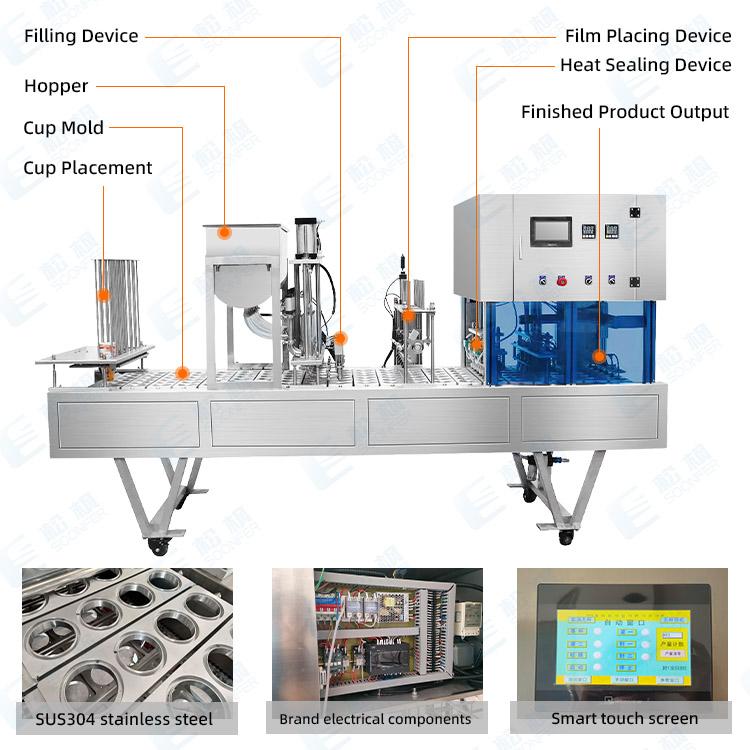

1. The machine can automatically complete the processes of cup placement, metering, filling, film placementsealing, and finished product output.
2. The machine adopts a multi-line filing design with high working efficiency and strong expansion capability.
3. Twice sealing, sealing pressure can be adjusted according to customer requirements as easy or difficult to tear.
4. Equipped with multiple sets of detection sensors, it can achieve no filing without cups and no sealing withoutfilms.
5. it adopts brand intelligent PLC control, and the machine operation is more stable and reliable.
