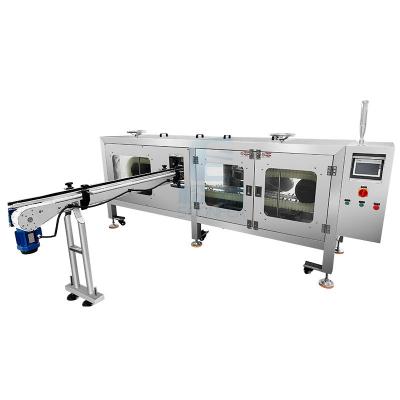

Automatic Air Drying Glass Jar PET Bottle Rinsing Washing Machine
Application of automatic bottle rinsing washing machine
The automatic bottle rinsing washing machine is mainly suitable for cleaning glass bottles, plastic bottles, aluminum bottles, polyester bottles, etc. It is used for bottle cleaning before filling. It can be used in food, beverage, wine, agriculture, chemical and other industries.
Specification of automatic bottle rinsing washing machine
|
Production Capacity |
50-150 bottles/min |
|
Applicable Product Height |
100-300mm |
|
Applicable Product Diameter |
40-200mm |
|
Rinse Time |
0.5-3 seconds (adjustable) |
| Flushing Pressure |
0.2-0.8Mpa |
| Voltage | 220V/380V |
| Power | 7.4KW |
|
Machine Size |
4200(L)* 1400(W)* 2500(H)mm |
|
Machine Weight |
1000kg |
Features of automatic bottle rinsing washing machine

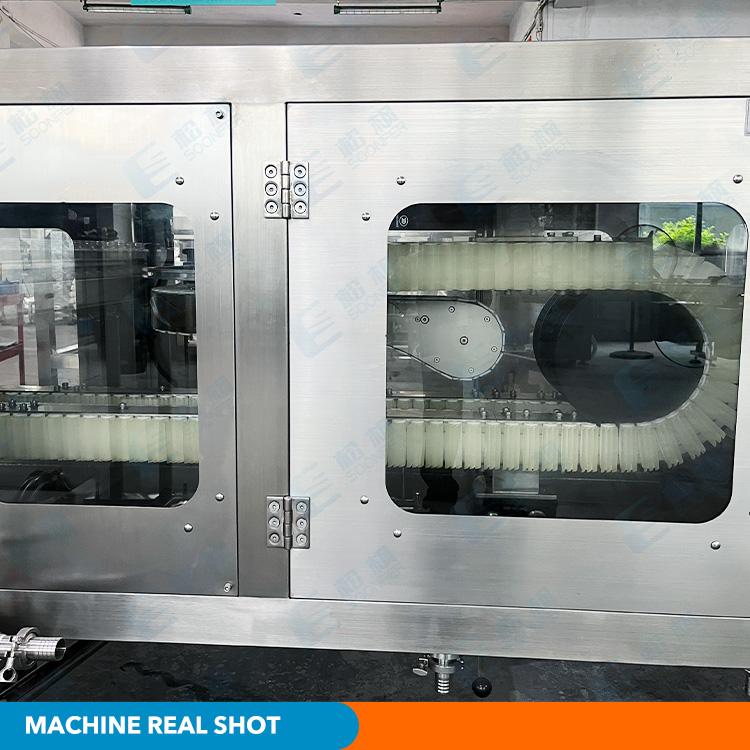

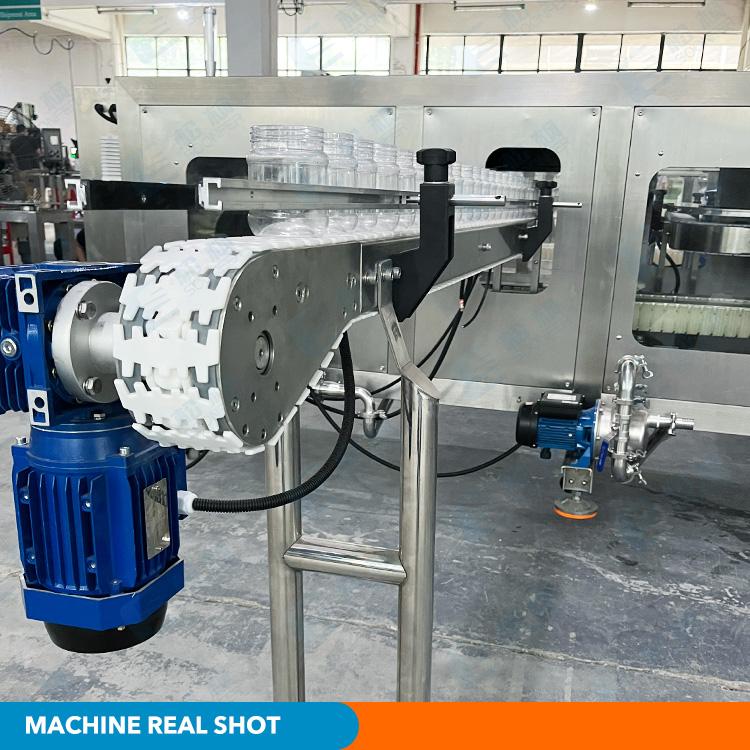

1. It primarily consists of a bottle-gripping belt, a conveyor belt, and a water-air cleaning mechanism. It can be used in conjunction with a filling line or as a standalone bottle-washing system.
2. Bottles are fed from the bottle-gripping belt to the conveyor belt, where they are gripped by the bottle-gripping device and flipped into the cleaning system. A high-pressure pump pressurizes the bottles and then injects water for a water-washing process, completing both the water-washing and air-washing steps.
3. The entire machine utilizes a corrosion-resistant SUS304 frame, ensuring a long service life.
4. Easy operation and maintenance are simplified, and the machine allows for easy interchangeability (no parts replacement is required within the compatible range), ensuring high bottle cleanliness.
