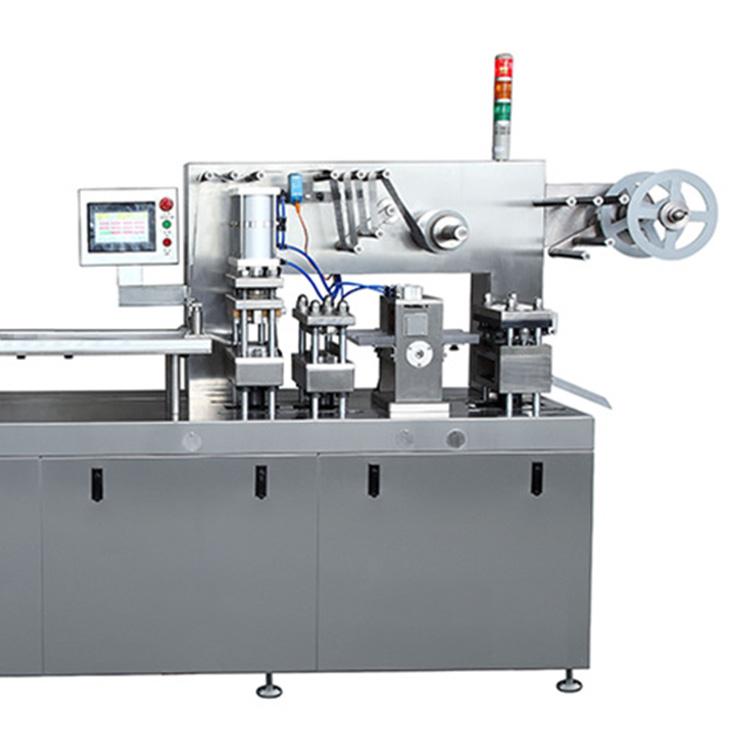

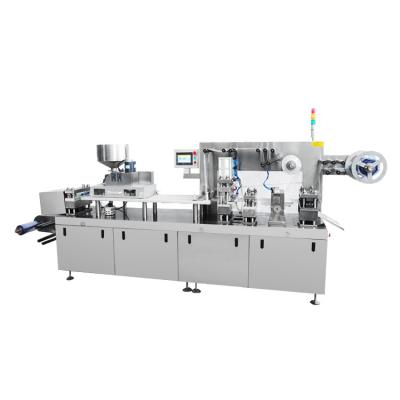

Full automatic pharma alu alu tablet pill blister packaging machine price
Application of tea stick bag packing machine
The machine is suitable for tablets, pills, capsules, honey, electronic cigarettes, perfume, butter, tomato paste, soft capsule, candy, etc.
Specification of tea stick bag packing machine
|
Bursting frequency |
Aluminum pressed aluminum:15-30 times/min |
|
Adjustable range of stroke |
30-110mm |
|
Maximum forming area |
160*100mm |
|
Maximum forming depth |
16mm (customizable) |
|
Host power |
1.5kw |
|
Air pump volume flow |
≥0.2m³/min |
|
Air pressure |
0.4-0.6Mpa |
|
PVC specification |
0.25-0.5*180mm |
|
PTP specification |
0.02-0.035*180mm |
|
Dialysis paper |
50-100g*180mm |
|
Dimensions |
3050*590*1550mm |
|
Machine weight |
780kg |

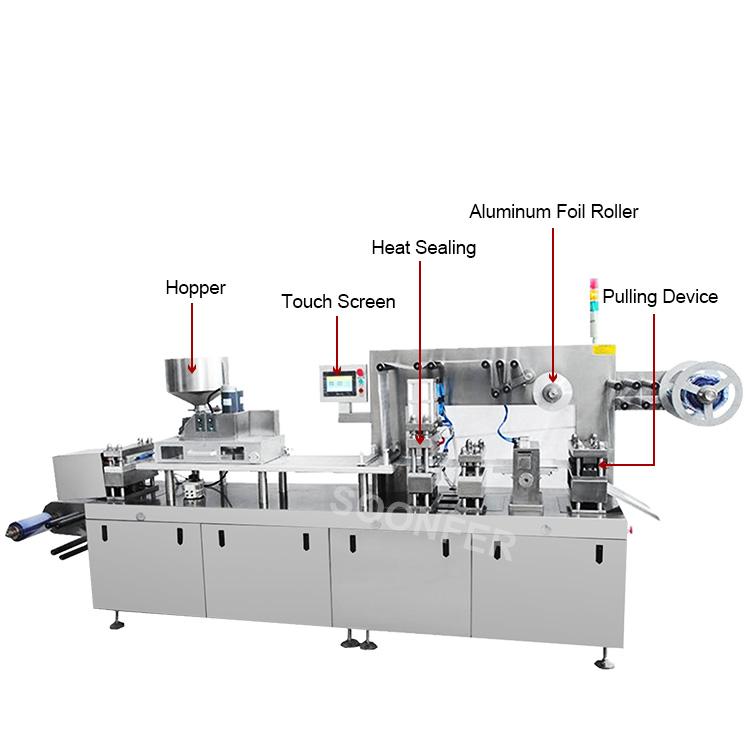

Feature of tea stick bag packing machine
1. Flat structure, can pack special shape items, such as oval, square, triangle, liquid, paste, syringe, etc..
2. The main transmission part adopts parallel shaft helical gear reducer, with novel structure, stable operation, long life and low noise.

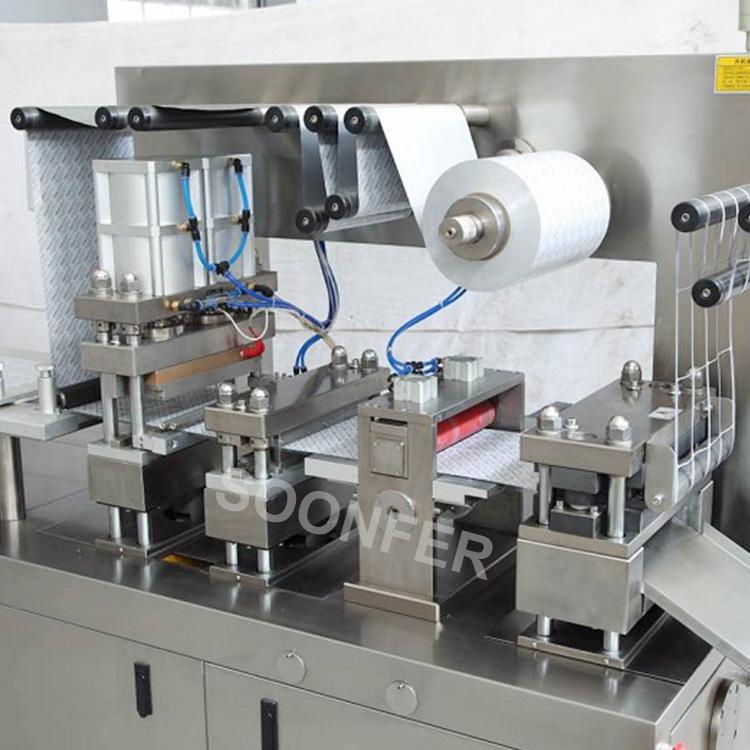

3. Heat sealing is fixed, forming, indentation, punching and other parts can be moved freely to adjust the distance, and the correction is convenient and simple.
4. Manipulator traction, adjustable stroke, can be adapted to the packaging of different sizes.
