Application of tax stamp labeling machine

The tax stamp labeling machine applies tax stamps to boxes using automatic label pickup and hot melt adhesive application. The machine combines synchronized conveying and labeling with brush smoothing to help produce neatly attached stamps. Operators can manage parameters through the touch screen, while automatic label detection and shutdown alarms help reduce label waste.

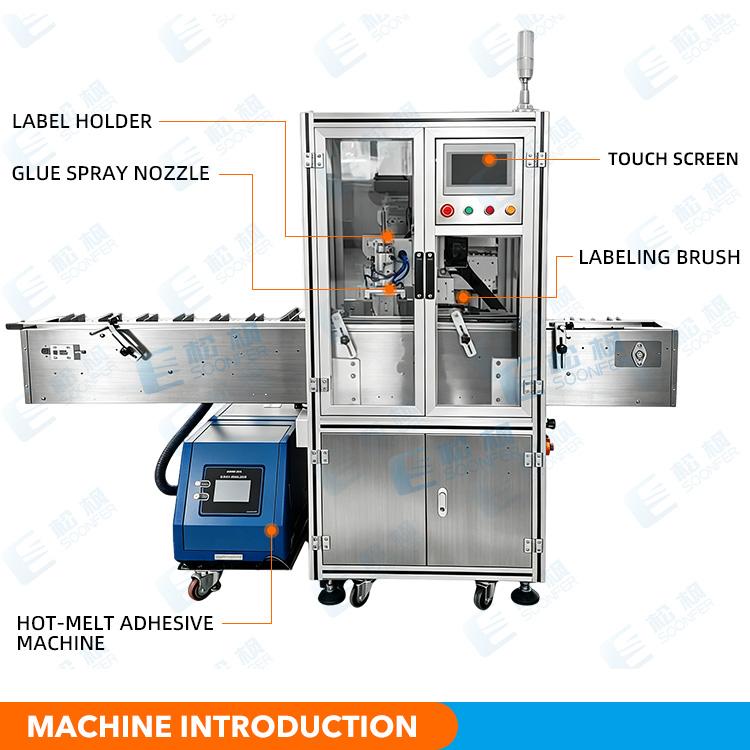

The operator loads tax stamps into the label holder and sets the operating parameters through the touch screen. The conveyor moves boxes through the labeling area while a vacuum suction cup picks up each stamp. The nozzle sprays hot melt adhesive onto the stamp before the machine places it onto the box. The labeling brush then smooths the attached stamp against the box surface to help achieve flat and secure adhesion.

It is designed for packaging operations that require tax stamp application on compatible boxes. It handles stamp pickup, hot melt adhesive application, and brush smoothing for the confirmed box and stamp combination. Compatibility depends on the box material and dimensions, tax stamp specifications, and required application position. Buyers should provide actual box and tax stamp samples for compatibility confirmation before ordering.

Specification of tax stamp labeling machine

1. Durable Construction Supports Long Service Life: The machine combines 304 stainless steel and aluminum alloy to provide corrosion resistance and support a long service life.
2. Touch Screen Controls Simplify Machine Operation: Operators can set parameters through the touch screen and access help functions for operating guidance. The clear control interface simplifies machine setup and daily operation.
3. Synchronized Speeds Make Adjustments Easier: The machine synchronizes conveying and automatic labeling speeds to keep box movement coordinated with stamp application. This function helps operators make faster and easier adjustments.
4. Automatic Pickup and Brush Smoothing Support Secure Attachment: A vacuum suction cup automatically picks up each tax stamp from the holder and transfers it to the box. A labeling brush smooths the applied stamp to help achieve a flat and secure finish.
5. Adjustable Glue Settings Provide Application Control: The nozzle sprays hot melt adhesive onto the tax stamp. Operators can adjust the adhesive temperature and dispensing volume to match the confirmed requirements of the stamp and box.
6. Automatic Label Detection Helps Reduce Waste: The machine detects labels automatically and provides automatic shutdown and alarm functions. These functions help reduce label waste during operation.

FAQs of tax stamp labeling machine

Q1. What type of packaging can this machine label?
A1: The machine applies tax stamps to boxes. Buyers should confirm compatibility based on the actual box material, dimensions, stamp specifications, and application position rather than assume that every packaging format is supported.

Q2. Does an operator need to place each tax stamp on the box manually?
A2: The operator loads tax stamps into the holder, and a vacuum suction cup automatically picks up each stamp for application. This mechanism removes the need to position every stamp on the box by hand during the labeling process.

Q3. What adhesive does the machine use, and can the glue settings be adjusted?
A3: The machine uses a nozzle to spray hot melt adhesive onto the tax stamp. Operators can adjust the adhesive temperature and dispensing volume according to the confirmed application requirements.

Q4. How does the machine help keep the tax stamp flat and securely attached?
A4: A labeling brush smooths the tax stamp after the machine places it onto the box. This action helps the stamp lie flat against the box surface and supports secure attachment.

Q5. How do operators set up the machine?
A5: Operators enter operating parameters through the touch screen. The interface also provides help functions that support machine operation and parameter adjustment.

Q6. How does the machine coordinate conveying and labeling?
A6: The machine synchronizes conveying and automatic labeling speeds. This coordination keeps box movement aligned with the labeling process and makes speed adjustments faster and easier.

Q7. What functions help reduce label waste?
A7: The machine includes automatic label detection, automatic shutdown, and alarm functions. These functions help reduce label waste during operation.

Q8. What information should I provide before ordering?
A8: Please provide the box dimensions and material, tax stamp dimensions and material, required application position, and target production speed. Actual box and tax stamp samples should be used to confirm compatibility and the final machine configuration.
