Fully automatic doypack bag liquid bee honey pouch packaging packing machine

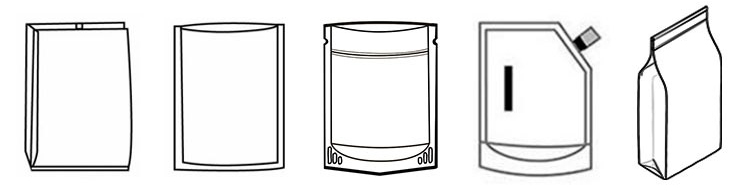

Liquid honey packaging machine is suitable for special-shaped bags, zipper bags, spout bags, prefabricated bags, etc.

  • Item NO.:

    SF-200YZD
  • Payment:

    TT,credit card,western union
  • price:

    $20300/set
  • Price Range:

    6 - 10/$13300
  • Price Range:

    3 - 5/$18000
  • Product Origin:

    China
  • Color:

    304 stainless steel
  • Shipping Port:

    Foshan / Shenzhen / Guangzhou port
  • Lead Time:

    15days
  • Order(MOQ):

    1
  • Goods Stock:

    100
  • Product weight:

    1300KG
  • Product Detail
  • Video

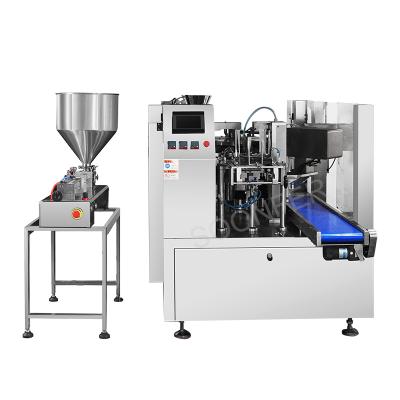

Fully automatic doypack bag liquid bee honey pouch packaging packing machine


Application of liquid doypack pouch packing machine

This machine is suitable for liquid products such as food and daily necessities, such as ketchup, seasoning sauce, tartar sauce, edible oil, soy sauce, honey, juice, jam, milk, jelly, sports drink, shampoo, hand soap, shower gel, laundry liquid etc.


bee honey pouch packing machine


Specification of liquid doypack pouch packing machine

Packing speed  20-60 bags/min (depending on the weight of the material)

Measuring range

10-1500g (depending on the characteristics of the material)
Bag width
120-250mm

Bag length

80-360mm

Film materials

PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP, etc.

Power

380V, 50/60Hz, 8.5kw

Gas consumption

0.4m³/min

Dimension

3500(L)*1650(W)*1700(H)mm

Machine weight

1300kg

Features of liquid doypack pouch packing machine

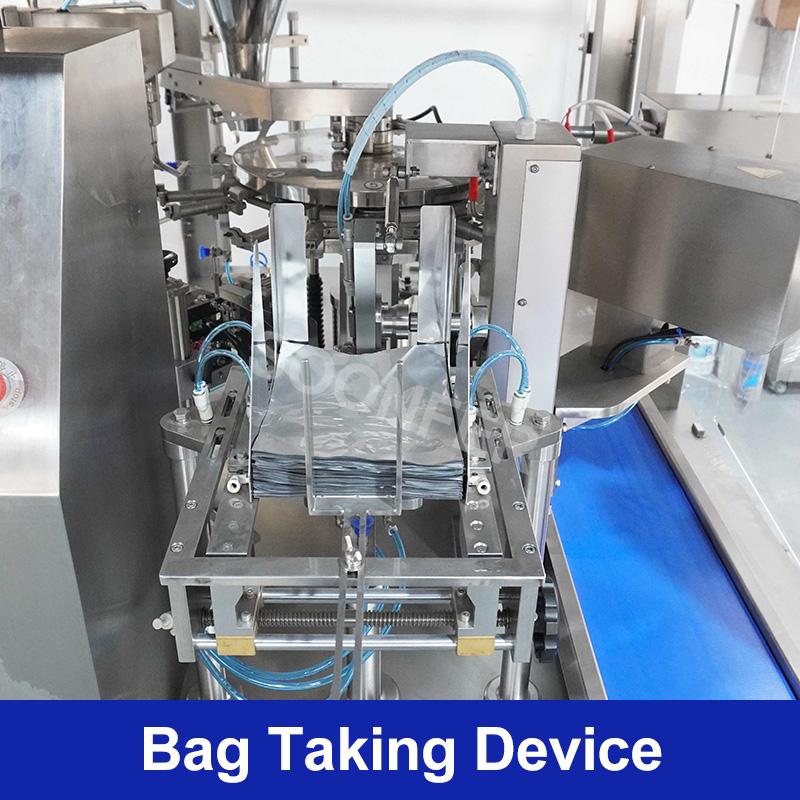

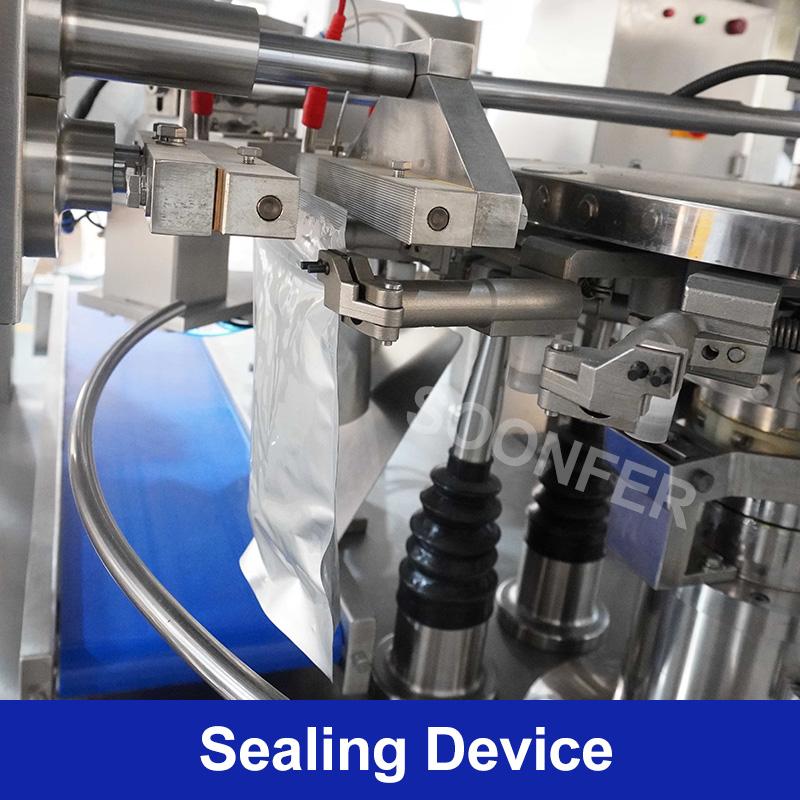

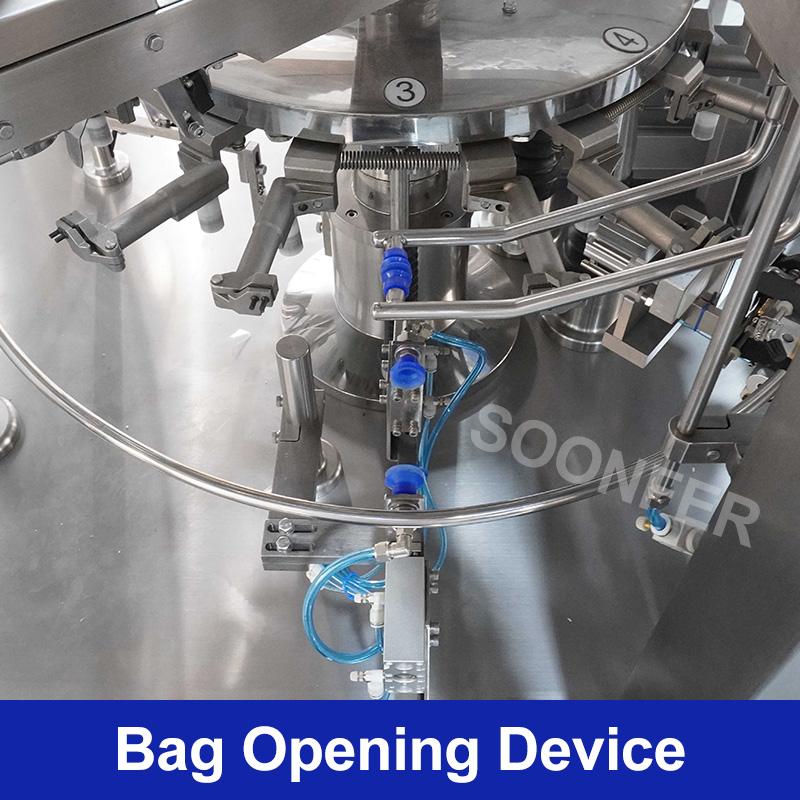

1. 8-station design, can automatically complete a series of processes such as bag taking, bag opening, metering, blanking, sealing, etc.

2. High quality and performance, the frame is made of 1.5mm thickness 304# stainless steel.

3. Intelligent PLC control, fast and stable operation of the machine.

4. The touch screen is used to set packaging parameters, supports multiple languages, and the operation is simple and easy to understand.

5. With electric eye detection function, automatic stop operation without bag.

6. The host adopts a new frame design, which occupies a small area and is easy to detect and maintain.

7. Independent temperature PID controller.
