Automatic small vertical 5g 10g pepper sugar salt pouch sachet stick packing machine
Application of granule packing machine
The granule packing machine is suitable for packaging loose rounded granules in the pharmaceutical, food, chemical, and other industries, such as puffed granules, peanuts, melon seeds, rice, seeds, pepper, corn kernels, popcorn, sugar, salt, biscuits, raisins, coconut flakes, pet food, coffee powder, and other granular solid materials.
Specification of granule packing machine
| Filling Range | 1-100g |
| Packing Speed |
30-80bags/min |
|
Bag Size |
Width:30-130 mm; length: 30-170mm |
|
Film Width |
Max.300mm |
|
Power |
220V, 50HZ, 1.2KVA |
|
Machine Size |
1240(L)*950(W)*1930(H)mm(2.27CBM) |
|
Packing Material |
Laminated film like OPP/CPP, OPP/CE, MST/PE/PET/PE |
|
Bag Type |
Backside seal/3-side seal/4-side seal
|
|
Machine Texture |
Carbon steel body and Stainless Steel 304 contact parts |
|
Accuracy |
+/-1% |
Features of granule packing machine

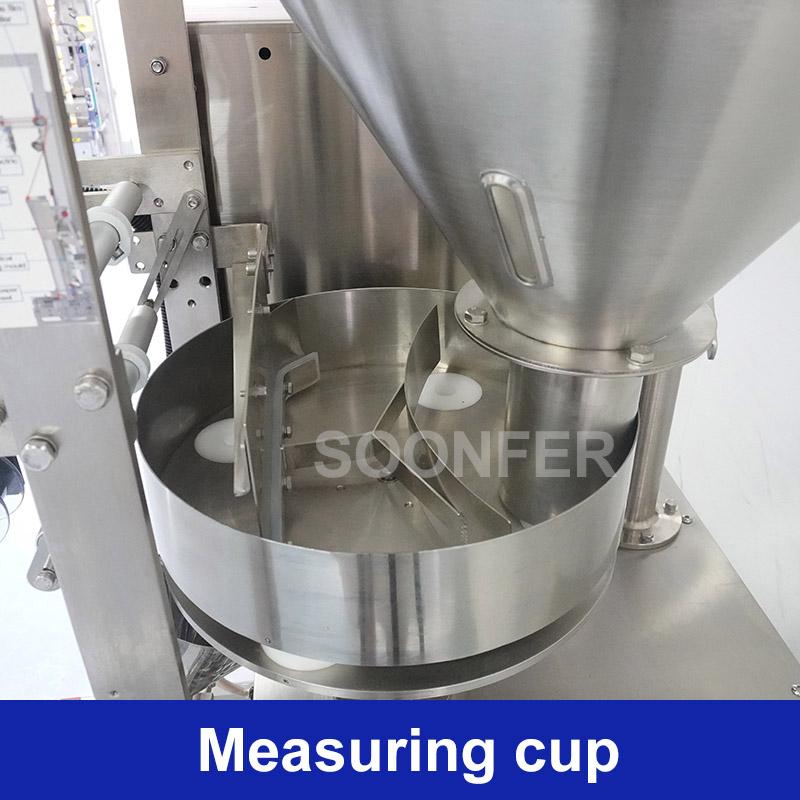

1.Food grade 304 volumetric cups for metering, high accuracy and easy operation.
2.PLC intelligent computer system for efficient running.
3.Step motor for film drag structure, smooth film running and accurate bag cutting.
4.Touch screen, easy operation and multiple language for choice.
5.Separate PID temperature controller, suitable for various packing materials. Such as aluminium film, paper film, PE film, water-soluble film and composite film.

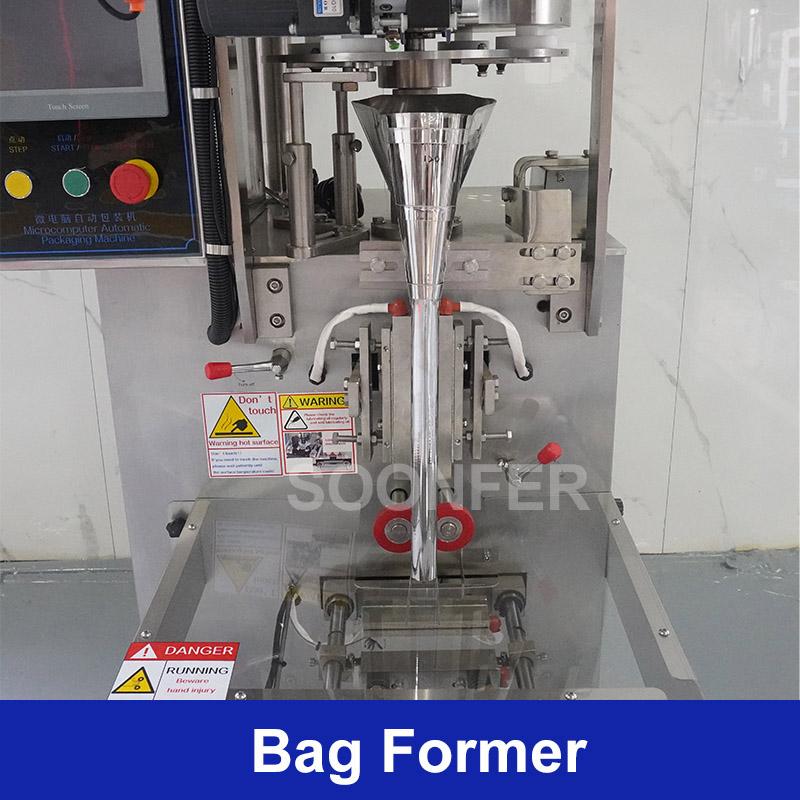

6.Articulated bag former structure, enable stable bag forming for perfect bag shape.

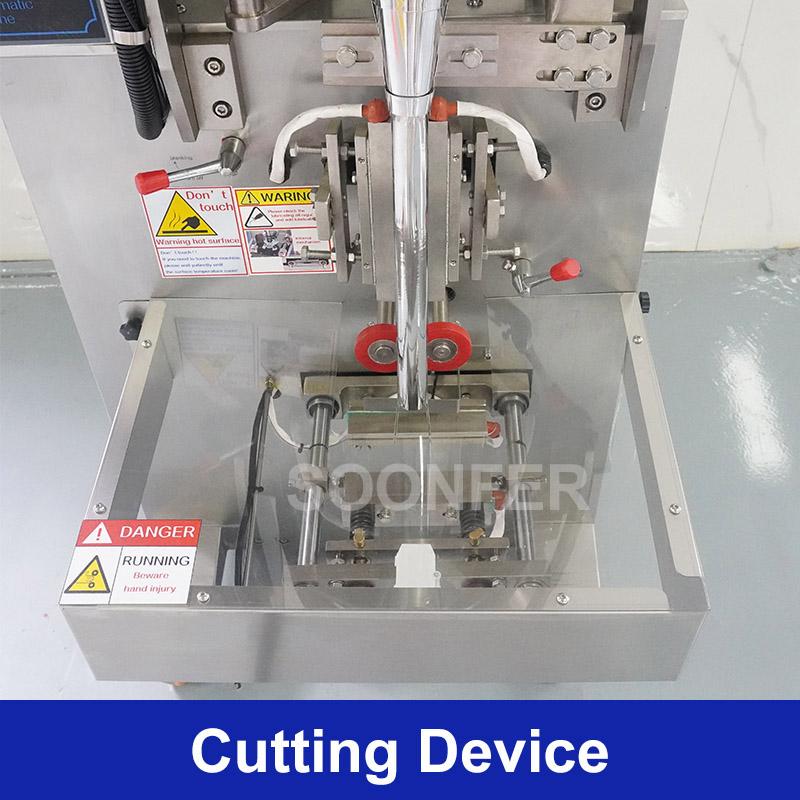

7.Sophisticated vertical and horizontal sealing framework achieve the consistency of bag sealing and cutting.
8.automatically finish the process of filling, metering, bag forming, air exhaust, sealing, packing and date printing.
9.Machine is simple operation, holding small space and easy moving.
