Automatic Tin Can Bottles Jar Mixed Nut Legumes Green Peas Mung Beans Filling Machine

Automatic Tin Can Bottles Jar Mixed Nut Legumes Green Peas Mung Beans Filling Machine

Application of granule bottling machine

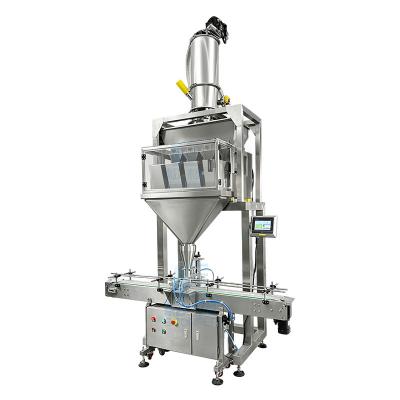

The 4 Head Linear Weigher Single Head Granule Filling Machine is designed for accurately weighing and filling free flowing granular materials into bottles, jars, cans and other containers. The machine uses four independent weighing channels to measure materials and then discharge them into the container sequentially or simultaneously. The process includes bottle positioning, weighing, material discharge and finished product output, with automatic bottle detection helping ensure stable filling operation.

It is suitable for free flowing granular materials with relatively uniform particle size and good flowability. It can also be used for mixed material filling, where different granular materials are weighed separately and filled into the same container. Typical applications include grains, seeds, beans, nuts, pet food, sugar, seasoning granules and other similar products.

Specification of granule bottling machine

1. Flexible Weighing for Mixed Products: Weigh different materials at the same time to support mixed product packaging. Independent feeding channels and weigh hoppers allow separate ingredients to be measured before filling, helping you expand your product offering beyond single material packs.
2. Four Weigh Hoppers for Efficient Filling: Four individual weigh hoppers can discharge sequentially or simultaneously through a single filling head. This flexible discharge arrangement supports efficient filling without requiring four separate filling stations.
3. Digital Weighing for Consistent Portions: Integrated high accuracy digital weighing sensors help control each portion and maintain consistent fill weights. Weighing tolerance is within ±1%, depending on target weight and material density, helping limit unnecessary product giveaway.
4. Stepless Vibration for Uniform Feeding: Stepless vibration technology distributes material more evenly as it enters the weighing system. This feeding method supports a wider weighing range and helps maintain consistent material delivery during weighing.
5. Bottle Detection to Prevent Empty Fills: Multiple infrared sensors detect bottle arrival beneath the filling head, and a bottle stopping cylinder holds the bottle in position for filling. No bottle no filling helps prevent product discharge when a container is missing.
6. Modular Design with 304 Stainless Steel: The integrated modular design simplifies setup, adjustment and maintenance. A 304 stainless steel construction supports food applications and makes cleaning and routine care easier.
