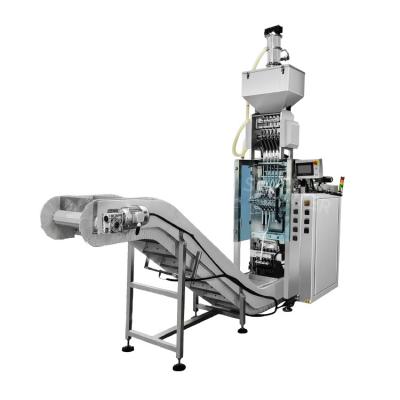

Multilane automatic small back seal stick sachet snus powder packaging packing machine
Application of multi lane snus powder packing machine

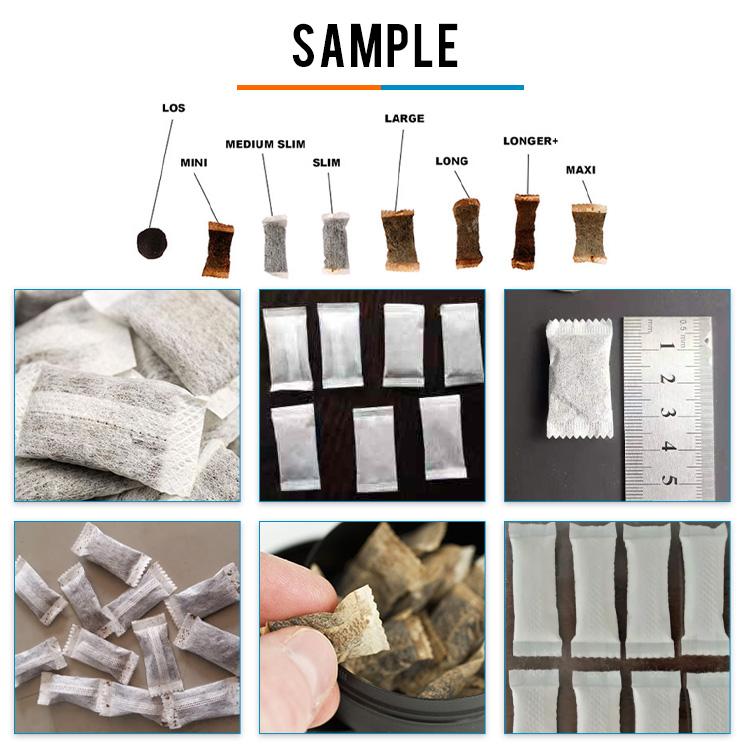

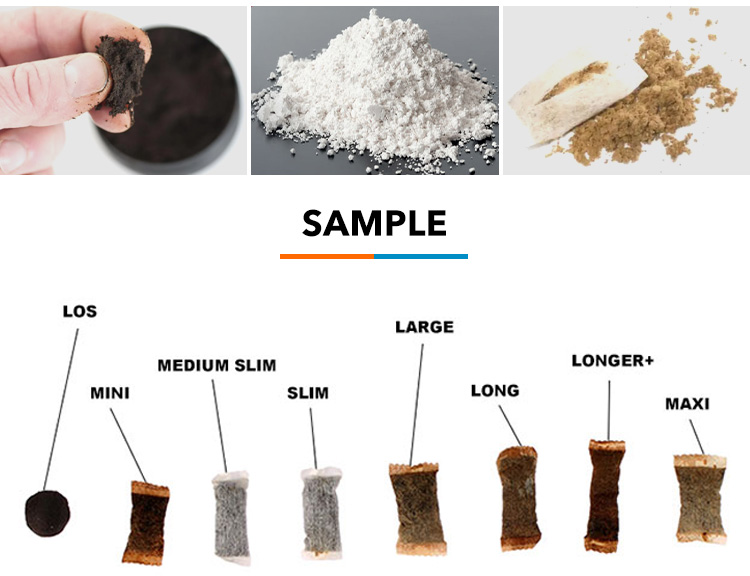

The multi lane snus powder packing machine can be used for the packaging of snus, the packaging material is snus film, we can also provide is suitable for various industries such as dry and wet snus, dust tea or other small sachets.
Specification of multi lane snus powder packing machine
| Lane number | 3-12 lanes |
| Filling method |
Volumetric cup |
|
Production speed |
Max.35 cycles/min |
| Bag size |
L:50-180mm; W:17-30mm |
|
Film width |
Max. 560mm |
|
Film thickness |
0.07-0.10mm |
|
Sealing type |
Back sealing / Stick bag |
|
Cutting type |
Straight cutting; zig zag cutting; round cutting |
|
Air consumption |
0.8Mpa, 0.8m³/min |
| Power |
220V, 50/60Hz, 5.5kw |
|
Machine size |
1685(L)*1300(W)*3500(H)mm |
| Weight | 550kg |
Features of multi lane snus powder packing machine
1. The machine can automatically complete a series of processes such as bag making, measuring, filling, sealing and cutting.
2. Adopt brand PLC control, automatic counting, to ensure the stable work of the machine and easy maintenance.
3. Set parameters through the intelligent touch screen, only one person needs to operate the machine, which is more efficient.
4. Horizontal sealing jaw to pull the bag with photocell to track it, ensure the fast speed and more smoothly
5. The main components with stainless steel , corrosion resistance, to adopt different environment of workshop
6. The machine adopts module structure design to meet the customized needs of customers.
