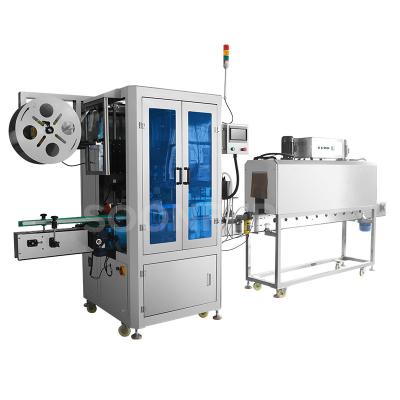

Automatic Bottle Heat Shrink Sleeve Labeling Machine
Application of shrink sleeve labeling machine

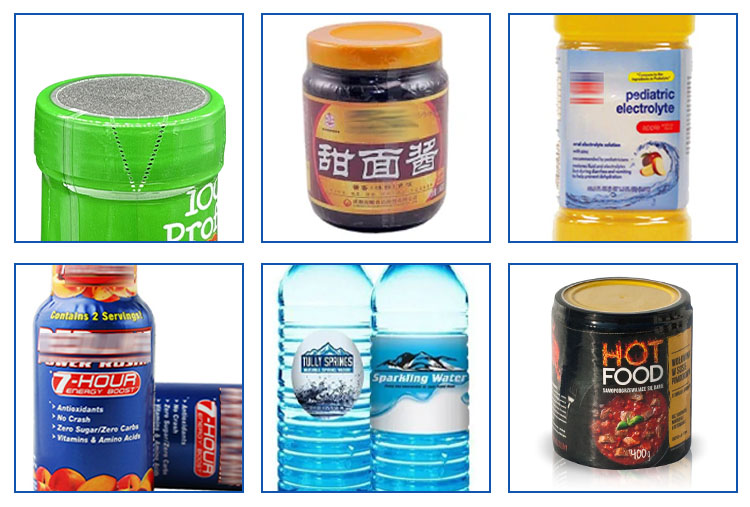

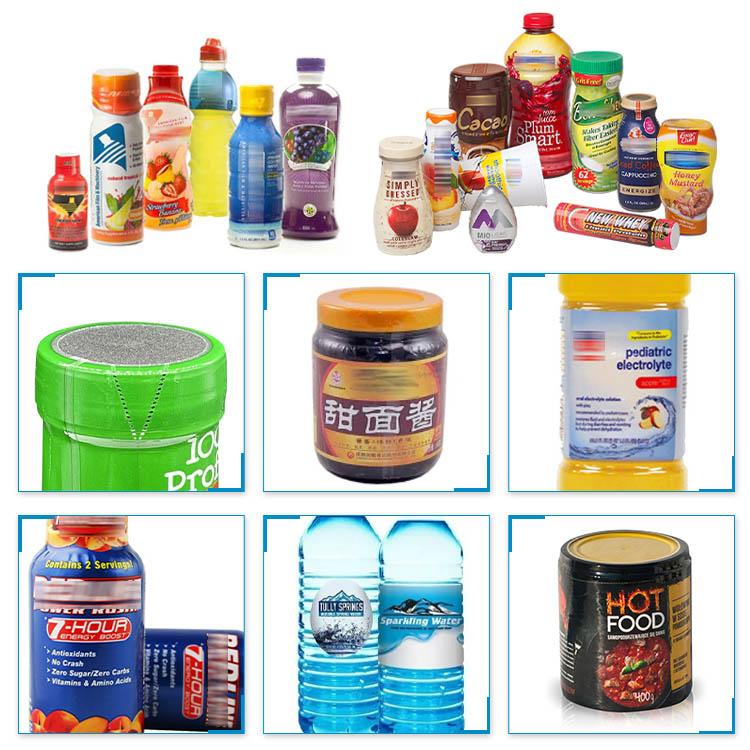

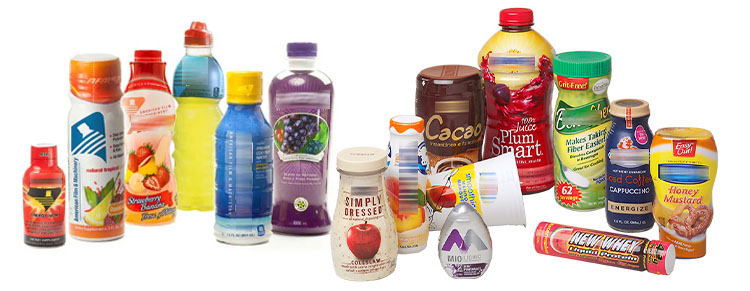

The automatic shrink sleeve labeling machine is suitable for heat shrinkable film packaging of various containers, shapes and materials, such as food and beverages, cleaning products, daily chemical products and other plastic bottles, glass bottles, PVC, PET, PS, tinplate and other containers.

Specification of shrink sleeve labeling machine
Labeling speed |
100-150 bottles/min |
Label length |
30-250mm |
Label thickness |
≥0.035mm |
Bottle diameter |
φ28-125mm(customizable) |
Bottle height |
50-280mm |
Capping speed | 100-150 bottles/min |
Power |
220V, 50/60Hz, 1.5kw |
Machine size |
2100(L)*850(H)*2000(W)mm |
Machine weight |
600kg |
Feature of shrink sleeve labeling machine
1. This machine can automatically complete a series of processes such as bottle feeding, labeling, cutting, and heat shrinking.
2. The shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5-10
3. Without tools, the driven machinery can be adjusted to meet different bottle size
4. Full automatic feeder, the flat shrinking and tension are adjusted together.
5. It is assured to low error that there is inspection of rolling label cut.
6. Particular blade design, blade base can be change by free, changing blade quickly and conveniently.
7. Using branded electrical components, the machine operates more stably and has a longer service life.
