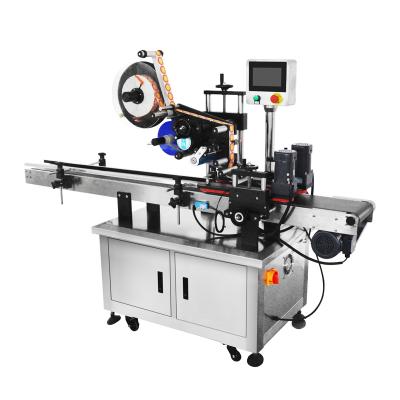

Automatic flat sticker bottle surface labeler labeling machine
Application of automatic flat labeling machine
Specification of automatic flat labeling machine
| Labeling speed |
10-40meters/min |
|
Labeling accuracy |
±1mm |
|
Max label width |
100mm（can be customized） |
|
Applicable product size |
Φ30-Φ80mm（can be customized） |
|

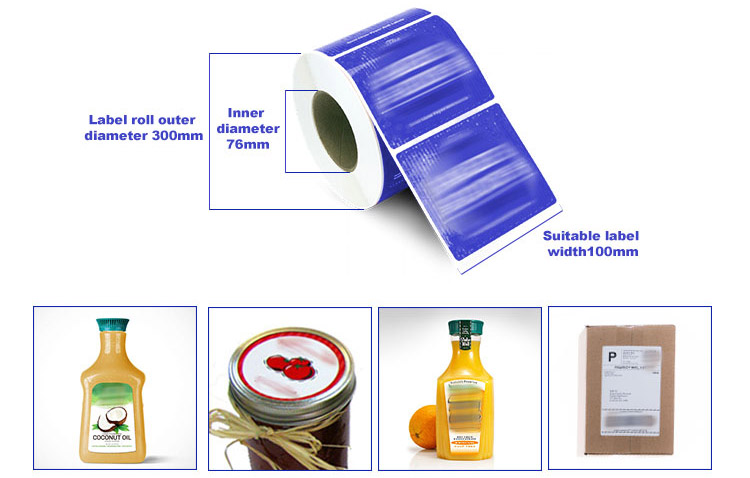

Applicable inner diameter of paper |
Φ76mm |
|
Applicable outer diameter of paper |
MaxΦ300mm |
|
Air source |
4-6KG 30L/min |
|
Dimension |
2000*800*1500mm |
|
Voltage |
220V 50Hz 2000W |
|
Weight |
250KG |
Features of automatic flat labeling machine
1.The labeling head can choose famous brand servo motor , realize the real closed Ioop control the high precision subdivision , all these are designed for the high precision.
2.Double-stage clutch design makes label tension more stable and easy to improve labeling accuracy
3.The control system uses Mitsubishi PLC and famous brand touch screen.
4. Belt conveyor suitable for all kinds of flat products labeling . Can choose product entrainment mechanism or labeling mold to achieve higher labeling precision .
5. Feeding device can be selected , Suitable for leaflets , envelopes , greeting cards ,cartons and other products.
6.Fully enclosed frame and SCHMEASAL safety switch can be selected.
