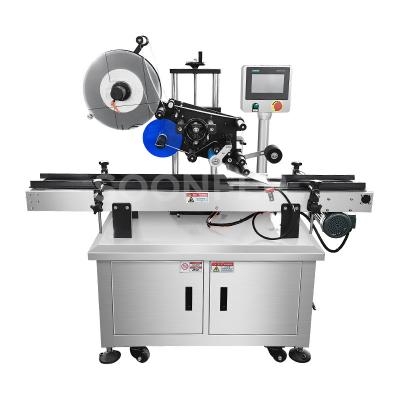

Automatic Top Surface Flat Bag Box Jar Labeling Machine
Application of automatic flat surface labeling machine
The automatic flat surface labeling machine is suitable for labeling in food, daily necessities, chemicals, express delivery and other industries. Such as fruit, meat, bottle caps, flour bags, express boxes, packaging bags, etc.
Specification of automatic flat surface labeling machine
| Labeling speed |
10-40meters/min |
|
Labeling accuracy |
±1mm |
|

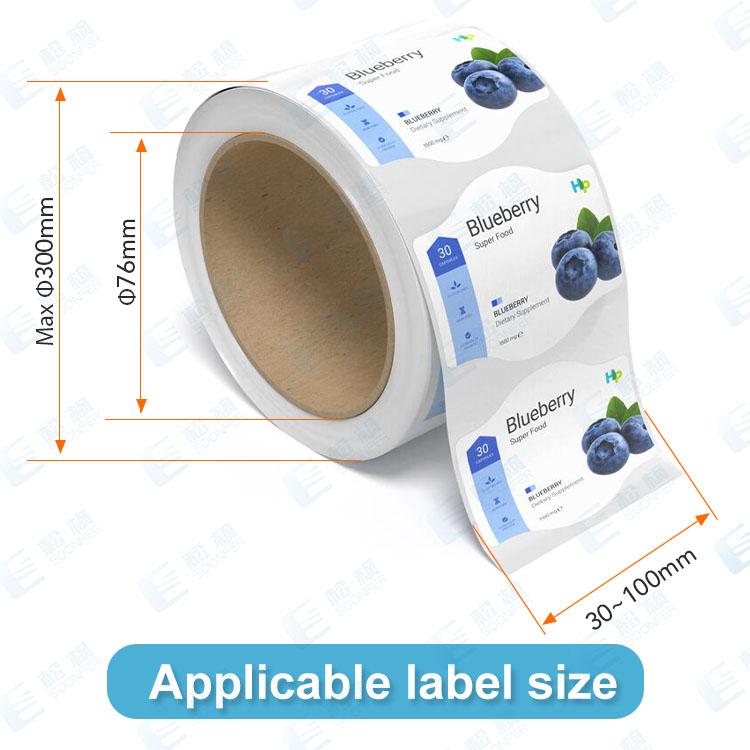

Label width |
30-100mm（can be customized） |
|
Applicable product size |
Φ30-Φ80mm（can be customized） |
|
Applicable inner diameter of paper |
Φ76mm |
|
Applicable outer diameter of paper |
Max. Φ300mm |
|
Air source |
4-6KG 30L/min |
|
Dimension |
2000(L)*800(W)*1500(H)mm |
|
Voltage |
220V, 50/60Hz, 2KW |
|
Weight |
250KG |

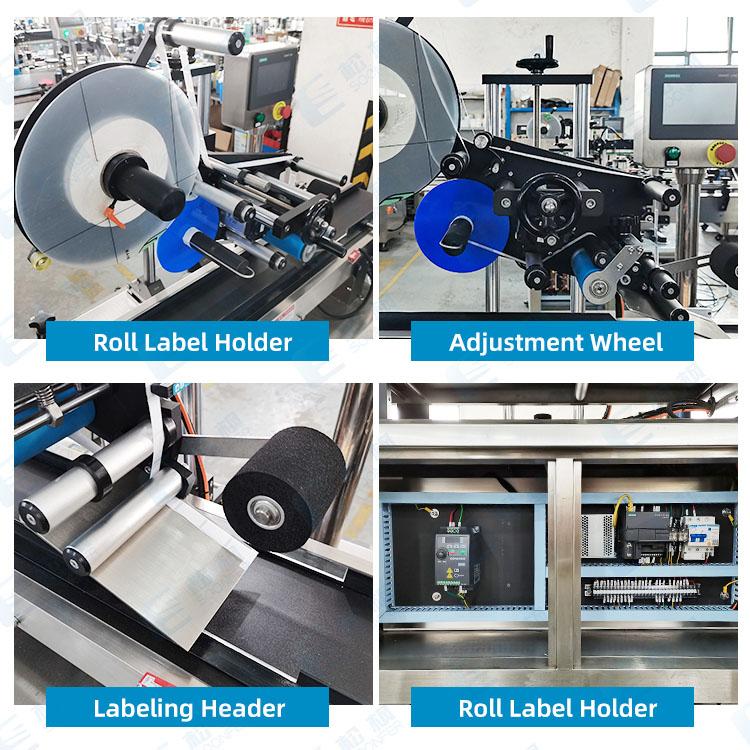

Features of automatic flat surface labeling machine
1. This machine can be used for bottle caps, bags, boxes, etc. with self-adhesive labels.
2. The labeling head is controlled by servo motor, which has higher labeling accuracy and higher work efficiency.
3. The label rack adopts a double-stage clutch design, which runs smoothly and reliably, and effectively prevents paper jams.
4. Adopt Mitsubishi PLC control system to realize intelligent operation of equipment, easy adjustment and maintenance.
5. Set machine parameters through the touch screen, support multiple languages, and the operation is simple and easy to understand.
6. With multiple high-precision sensors, it can realize no labeling without materials and reduce label waste.
