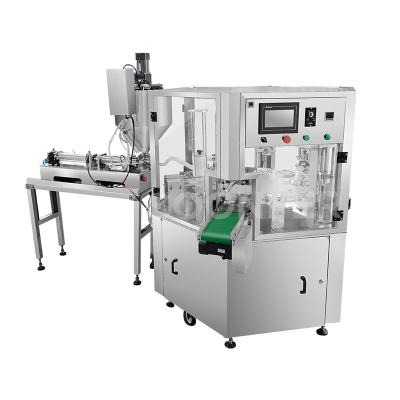

Automatic Lid Pressing Yogurt Cup Filling And Sealing Machine
Automatic cup filling sealing machine
The automatic cup filling sealing machine is suitable for filing and sealing materials such as jam, hummus, yogurt, peanut butter, ketchup, seasoning sauce, mayonnaise, barbecue sauce, chili sauce, tartar sauce, condensed milk, honeyice cream, jelly, etc.
Specification of cup filling sealing machine
|
Filling range |
30-300ml |
|
Filling speed |
15-25 cups/min |
|
Applicable cup diameter |
50-120mm |
|
Applicable cup height |
40-130mm |
| Power |
220V, 50/60Hz, 1.8kw |
| Air pressure | 0.6-0.8Mpa |
|
Machine size |
1700(L)*1600(W)*1500(H)mm |
|
Machine weight |
400kg |
Features of cup filling sealing machine
1 . The machine can automatically complete the processes of cup placement, metering, filing, film placement, sealing, spoon placement, capping, and finished product output.

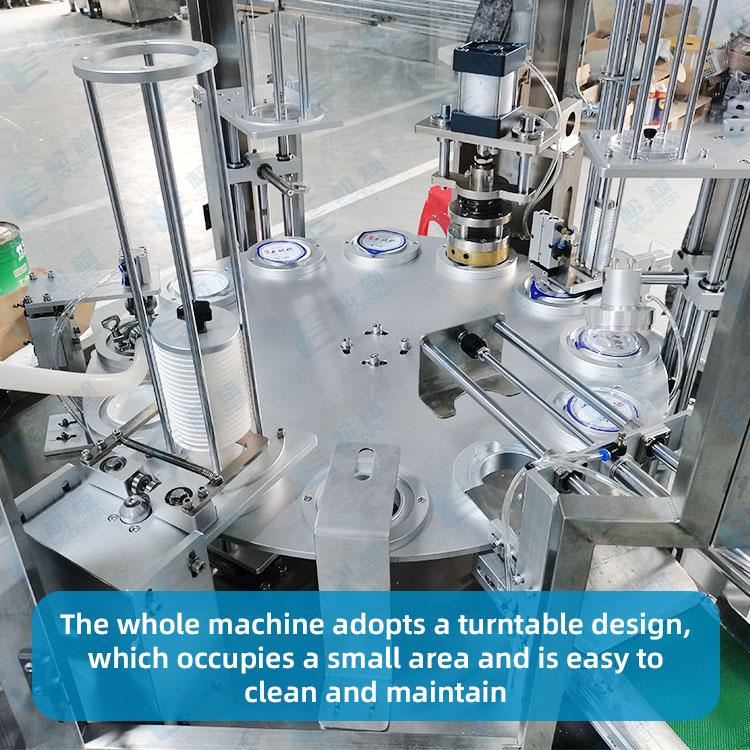

2. The whole machine adopts a turntable design, which occupies a small area and is easy to clean andmaintain.
3. Each working part is controlled by a cylinder separately, which effectively reduces the probability of error.
4. It is equipped with multiple sets of detection sensors to achieve no flling without cups and no sealing without films.
5. Adopting brand intelligent PLC control, the machine operates more stably and reliably.
