Automatic Rotary Ointment Toothpaste Plastic Tube Filling Machine

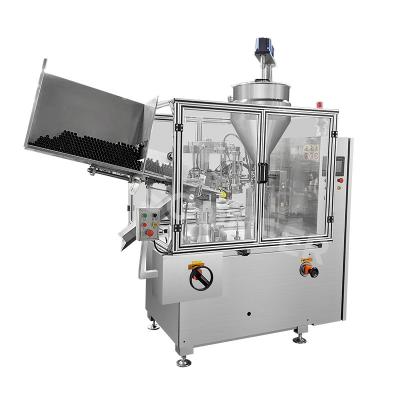

Automatic tube filling sealing machine
The automatic tube filling sealing machine is suitable for paste, skin cream, sunscreen, ointment, toothpaste, hair dye, shoe polish, AB glue, epoxy glue, etc.
Specification of tube filling sealing machine
| Model |
SF-09H |
|
Filling range |
20-500ml (or customized according to the sample) |
|
Filling speed |
40-60 pieces/min |
| Bottle type | Cylinder |
| Tube size |
φ10-60mm(Customizable) |
| Tube length | 45-250mm |
|
Accuracy |
±0.05% |
|
Power |
220V/380V, 50Hz, 5.3kw |
|
Air pressure |
0.55-0.65Mpa |
|
Machine size |
2500(L)*1200(W)*2400(H)mm |
|
Machine weight |
500kg |
Features of tube filling sealing machine
1. The machine can automatically complete a series of processes such as tube feeding, metering, filling, sealing (tail folding), batch number printing, and finished product delivery.

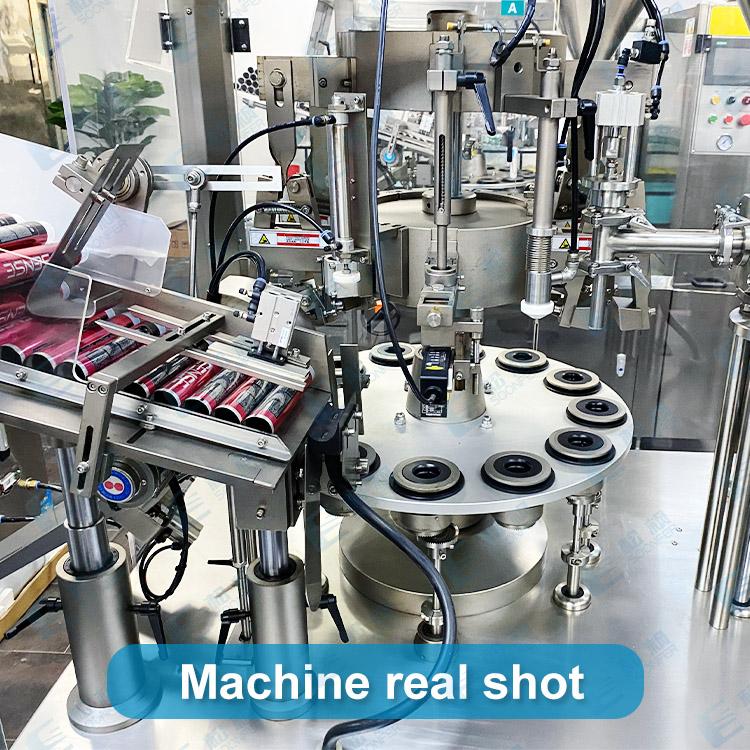

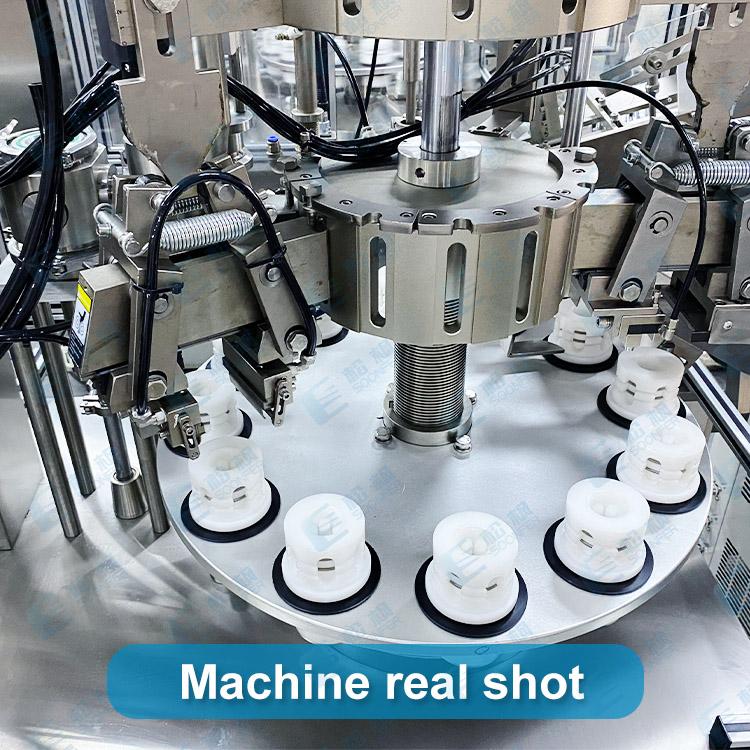

2. The rotary multi-station design is adopted, which occupies a small area and is convenient for inspection and maintenance.
3. Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.
4. Filling measurement is precise, heating time is stability and adjustable, the appearance of sealing is beautiful, tidy, solid, health. Trimming is smooth.
