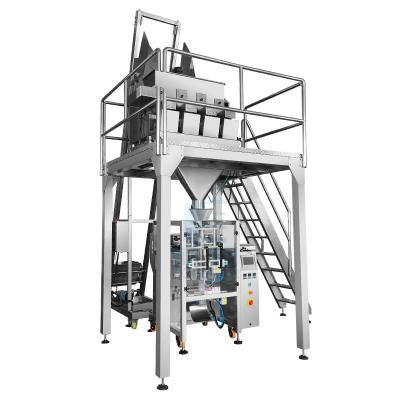

Automatic Vertical Form Fill Seal Cracker Cookies Biscuit Gusset Pouch Packing Machine
Application of automatic granule vertical packing machine
The automatic granule packaging machine is suitable for packaging various granular, flake, strip and block materials, such as sugar, salt, beans, tea, oats, cereals, millet, rice, coffee beans, dried fruits, nuts, candy, dried fish, frozen food, pet food, etc. The machine supports mixed packaging of various different materials. It can form back seal pouch and gusset pouch.
Specification of automatic granule vertical packing machine
| Model | 420AZ | 520AZ | 720AZ |
|
Packing Speed |
5-60 bags/min |
5-50 bags/min |
5-50 bags/min |
|
Filling Range |
50-1000g | 200-2000g | 500-5000g |
|
Bag Length |
60-300mm |
80-400mm | 100-480mm |
|
Bag Width |
100-200mm |
150-250mm | 180-320mm |
| Roll Film Width | Max.420mm |
Max.520mm |
Max.680mm |
| Packaging Materials |
OPP/CPP, OPP/PE, PET/PE, aluminized film, etc. |
||
| Voltage | 220V, 50/60HZ | ||
| Power | 3KW | 4KW | 5KW |
|
Machine Size |
1388(L)*1116(W)*1536(H) mm |
1795(L)*1150(W)*1650(H) mm |
1780(L)*1350(W)*1950(H) mm |
|
Machine Weight |
500kg |
600kg | 900kg |
Features of automatic granule vertical packing machine
1. The machine can automatically complete a series of processes such as bag making, metering, filling, sealing, and cutting.
2. It adopts intelligent PLC control, and the machine parameters are set through the touch screen. The operation is simple and convenient, and the machine runs efficiently and stably.
3. The whole machine is made of SUS304 stainless steel, with a long service life and easy cleaning and maintenance.
4. The servo motor is used to assist in film pulling, and the film is transported quickly and smoothly with high precision.
