Automatic Gear Pump Bottle Jar Fruit Puree Jam Filling Machine

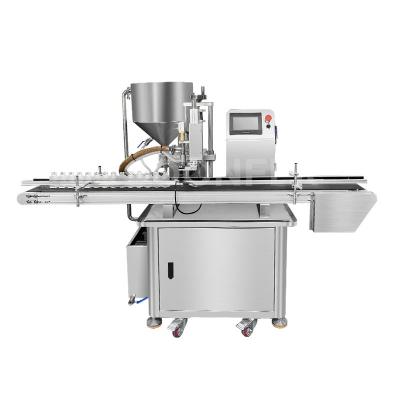

Automatic gear pump liquid filling machine
The fully automatic gear pump liquid filling machine is suitable for products such as sauces, pastes, beverages, including ketchup, BBQ sauce, hot sauce, pasta sauce, meat sauce, mayonnaise, tartar sauce, garlic sauce, hummus, jam, honey, syrup, polenta, instant soup, pet food, etc.
Specification of gear pump liquid filling machine
| Model |
SF-GSF1 |
| Filling head number | 1 |
|
Filling range |
20-500ml |
| Bottle height | 30-200mm |
| Bottle diameter | 15-100mm |
|
Filling speed |
1200-3000 bottle/hour |
|
Measurement accuracy |
＜±1% |
|
Power |
220V, 50/60Hz, 3.5kw |
|
Air pressure |
0.6-0.8mpa |
|
Machine size |
1800(L)*850(W)*1400(H)mm |
|
Machine weight |
150kg |
Features of gear pump liquid filling machine
1. The machine can automatically complete a series of work processes such as bottle feeding, metering, filling, and bottle discharging.
2. The filling head is made of SUS304 stainless steel, which is corrosion-resistant and has a long service life.
3. It has automatic discharge and cleaning functions. There is no need to disassemble parts. Filling water can discharge and clean.
4. No need to change accessories, it can adapt to bottles of different sizes by adjusting the hand wheel.
5. It adopts intelligent PLC control. After the machine arrives at the factory, it can be used without debugging.
