Automatic Cosmetic Skincare Gel Lotion Cream Filling Machine

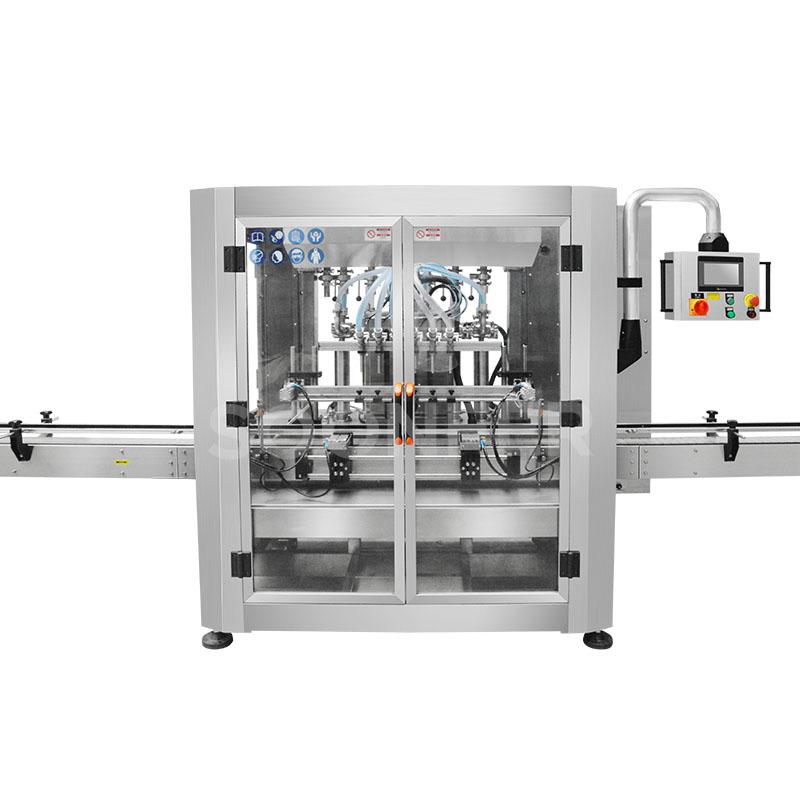

Automatic piston pump liquid filling machine
The automatic piston pump liquid filling machine is suitable for pastes, creams, oils and other products, such as hand soap, shower gel, shampoo, detergent, face cream, hand cream, sunscreen, lubricating oil, hair wax, hair dye, gel, etc.
Specification of piston pump liquid filling machine
| Model |
SF-GSF2 |
SF-GSF4 | SF-GSF6 |
| Filling head number | 2 | 4 | 6 |
|
Filling range |
100-1000ml |
100-1000ml |
100-1000ml |
|
Filling speed |
600-800 bottle/hour |
900-1500 bottle/hour |
1200-2100 bottle/hour |
|
Measurement accuracy |
＜±1% |
＜±1% |
＜±1% |
|
Power |
220V, 50/60Hz, 2kw |
220V, 50/60Hz, 2.2kw |
220V, 50/60Hz, 2.5kw |
|
Air pressure |
0.6-0.8mpa |
0.6-0.8mpa |
0.6-0.8mpa |
|
Machine size |
2800(L)*1500(W)*2100(H)mm |
3000(L)*1500(W)*2100(H)mm |
3200(L)*1500(W)*2100(H)mm |
|
Machine weight |
500kg |
600kg | 700kg |
Features of piston pump liquid filling machine

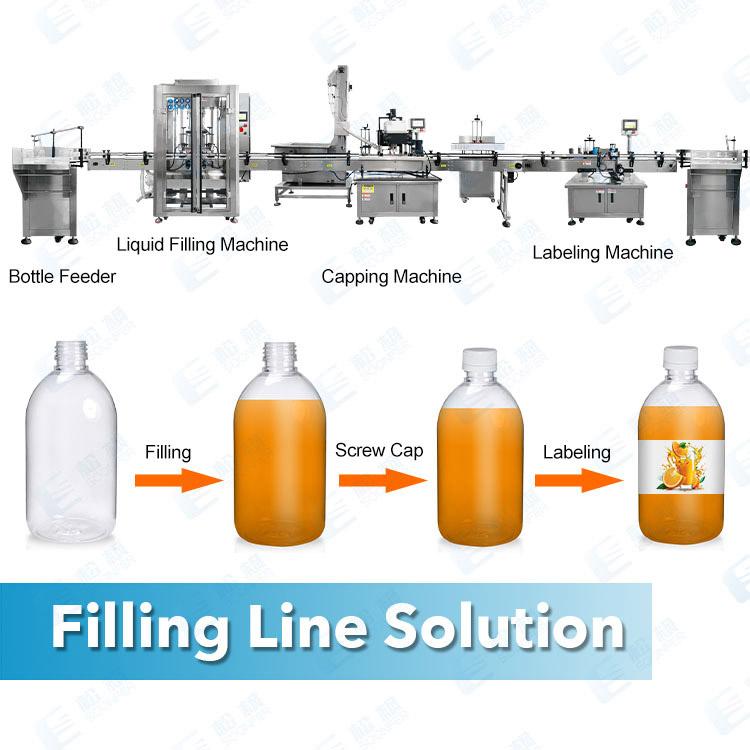

1. The machine can automatically complete a series of work processes such as bottle feeding, metering, filling and bottle discharging.
2. The servo motor is used to control the piston metering filling, which has fast filling speed and high metering accuracy.
3. It has automatic discharge and cleaning functions. No need to disassemble parts. It can be discharged and cleaned by filling water.
4. The miniaturized design occupies a smaller area and is more convenient for inspection and maintenance.
5. It adopts intelligent PLC control. The machine can be used without debugging after arriving at the factory.
