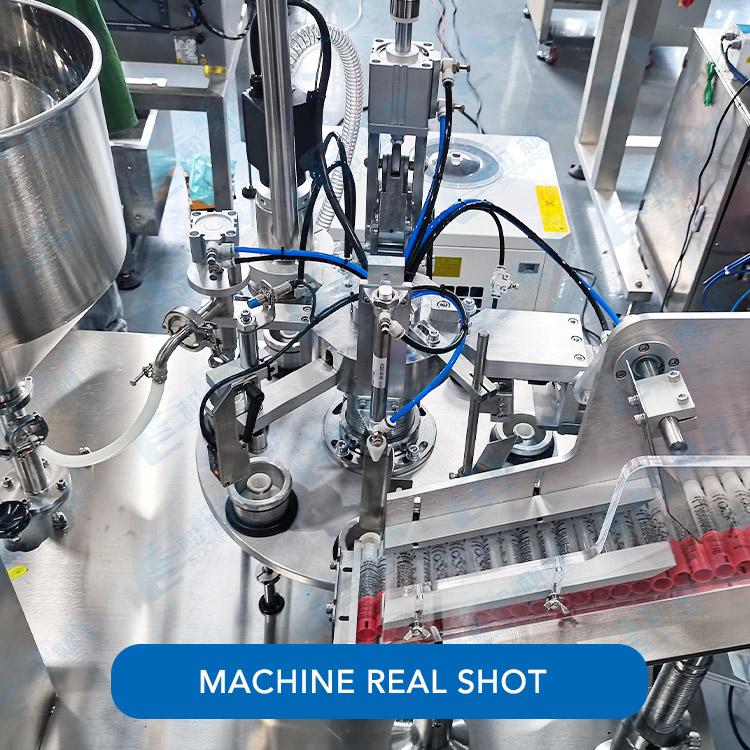

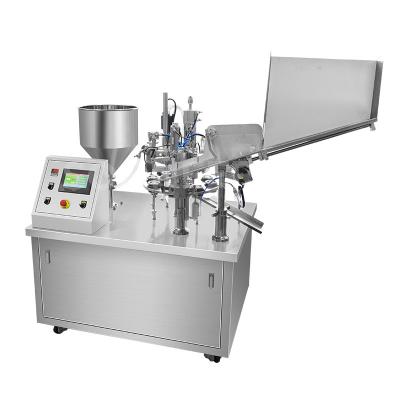

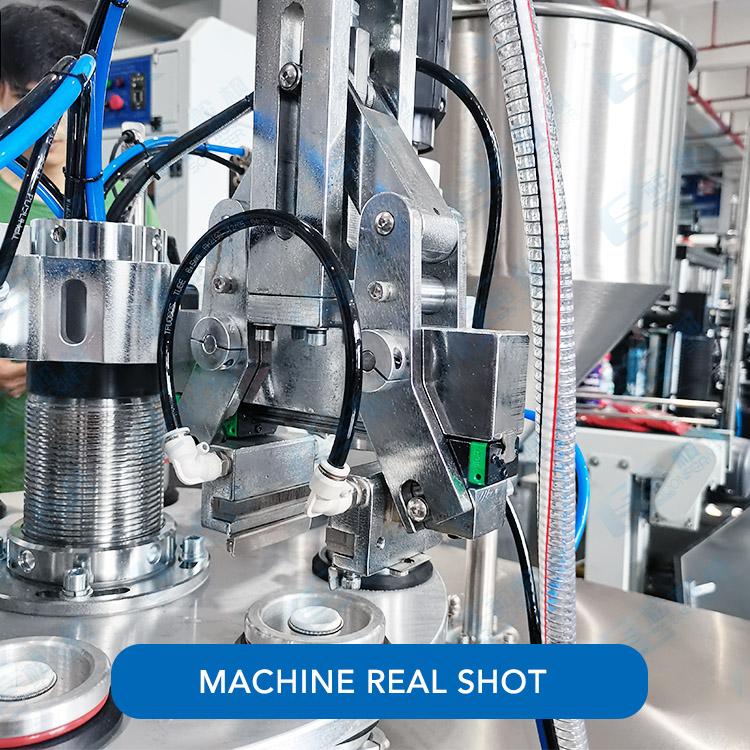

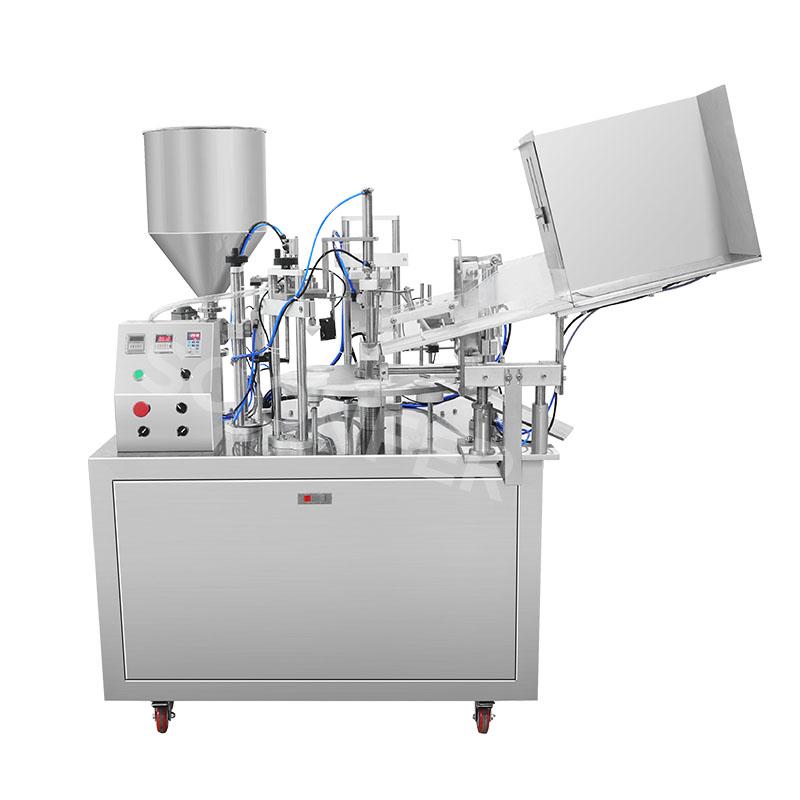

Automatic Rotary Small Plastic Lip Gloss Tube Filling Sealing Machine
Automatic tube filling and sealing machine
The automatic tube filling and sealing machine is mainly used for soft plastic tube filling, sealing and coding process.

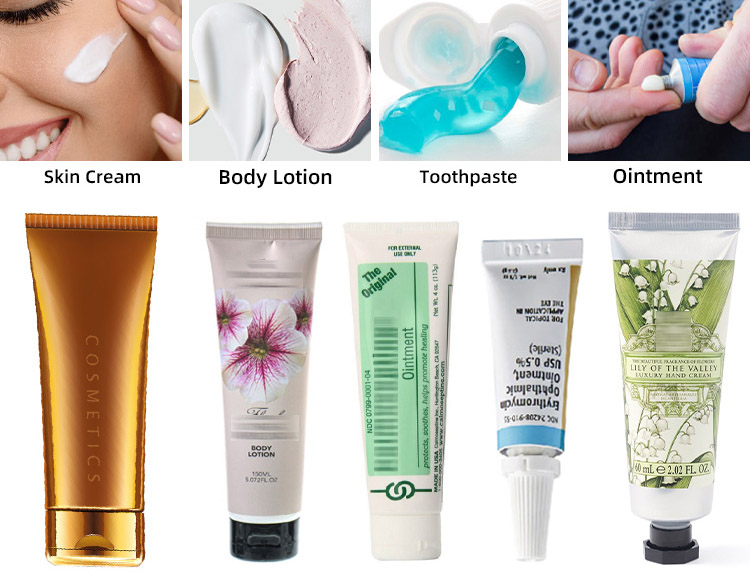

This machine is suitable for paste, skin cream, sunscreen, ointment, toothpaste, hair dye, shoe polish, AB glue, epoxy glue, etc.
Specification of tube filling and sealing machine
| Model |
SF-09H |
|
Filling range |
A:6-60ml, B:10-120ml, C: 25-250ml (or customized according to the sample) |
|
Filling speed |
20-35 pieces/min |
| Bottle type | Cylinder |
| Tube size |
φ5-50mm |
| Tube height | 45-200mm |
|
Accuracy |
±1% |
|
Power |
220V, 50/60Hz, 2kw |
|
Air pressure |
0.6-0.8Mpa |
|
Machine size |
1700(L)*1350(W)*1680(H)mm |
|
Machine weight |
500kg |
Features of tube filling and sealing machine
1. The machine can automatically complete a series of processes such as tube feeding, metering, filling, sealing, batch number printing, and finished product delivery.
2. The rotary multi-station design is adopted, which occupies a small area and is convenient for inspection and maintenance.
3. Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.
4. Filling measurement is precise, heating time is stability and adjustable, the appearance of sealing is beautiful, tidy, solid, health. Trimming is smooth.
