Automatic Curry Paste Mustard Pepper Sauce Cup Filling Sealing Capping Carton Packaging Machine Line

Automatic Curry Paste Mustard Pepper Sauce Cup Filling Sealing Capping Carton Packaging Machine Line

Application of sauce cup filling sealing packing machine line

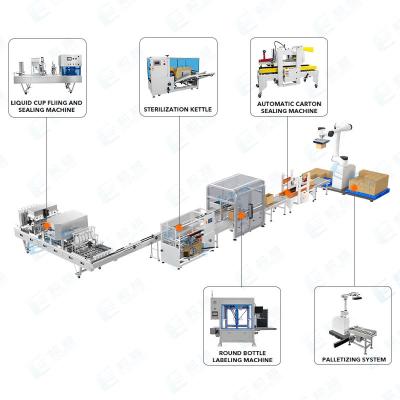

The sauce cup filling and packaging line is a fully automated solution designed for efficient production and secondary packaging of liquid or semi-liquid products. The line mainly includes a linear liquid cup filling and sealing machine, case erector, cartoning machine, case sealer, and palletizer. It integrates filling, sealing, boxing, sealing cartons, and palletizing into one continuous process, significantly improving production efficiency while reducing labor costs. The system is suitable for products such as sauces, condiments, dressings, ketchup, and other liquid foods packed in plastic cups.

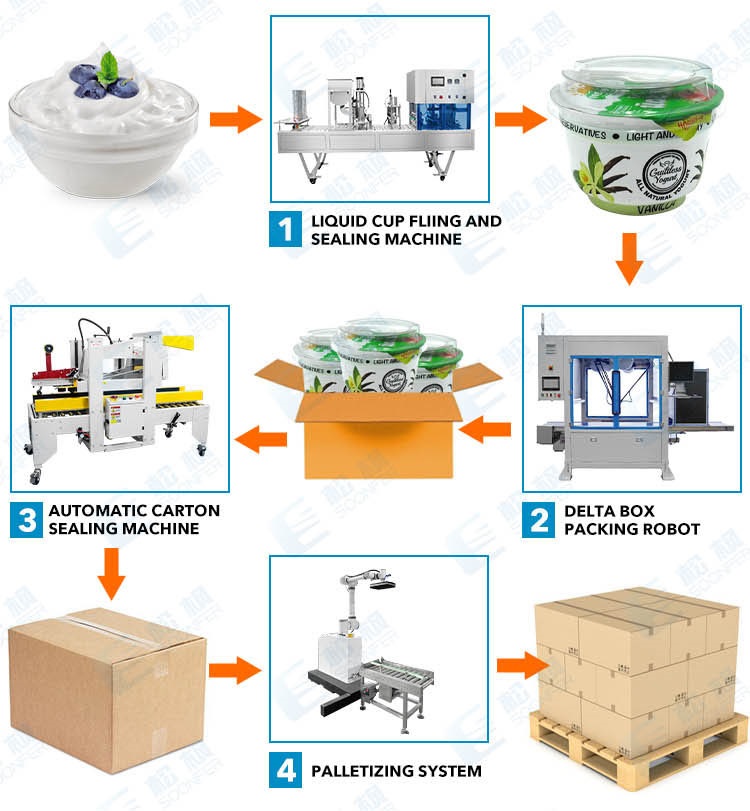

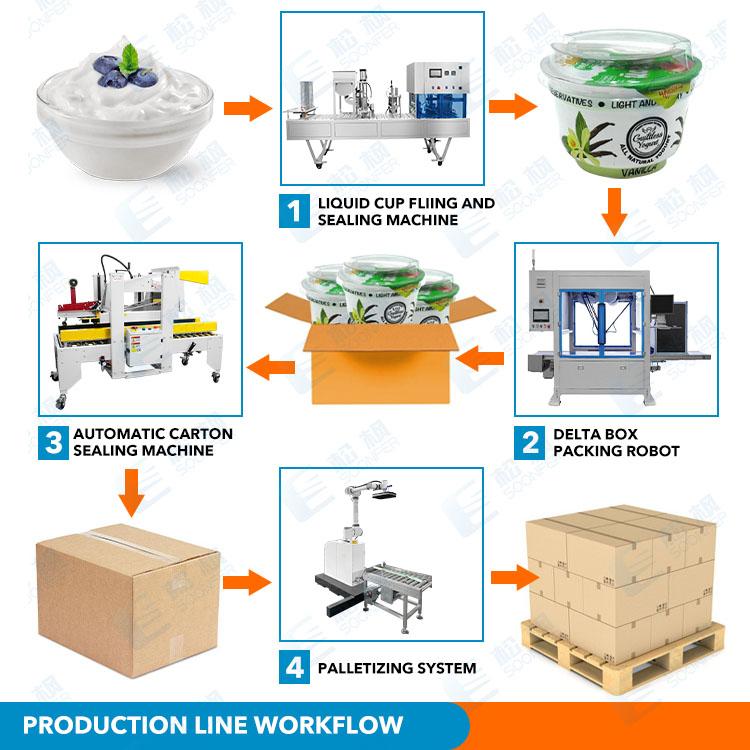

The Working Process is as below. Empty cups are first fed into the linear liquid cup filling and sealing machine, where they are automatically filled with sauce and sealed with film lids. The finished cups are then conveyed to the cartoning machine for automatic arrangement and packing into cartons. Meanwhile, the case erector forms the cartons and sends them to the packing station. After the products are loaded, the cartons move to the case sealer for secure sealing. Finally, the sealed cartons are transferred to the palletizer, which automatically stacks them onto pallets for easy storage and transportation.

Features of sauce cup filling sealing packing machine line

1.Fully automated packaging line: Integrates cup filling, sealing, cartoning, case sealing, and palletizing into one continuous production system, greatly reducing manual operations and improving overall production efficiency.
2.Accurate liquid filling system: The linear liquid cup filling machine ensures stable and precise dosing, minimizing product waste and maintaining consistent filling volume for every cup.
3.Reliable cup sealing technology: Advanced heat sealing ensures strong and hygienic sealing of cup lids, protecting the product from contamination while extending shelf life.
4.Efficient automatic cartoning: The cartoning machine automatically arranges and loads sealed cups into cartons, improving packing speed and ensuring neat product arrangement.
5.Automatic carton forming: The case erector automatically opens and forms cartons, reducing manual preparation and ensuring stable carton structure for packing.
6.Secure carton sealing: The case sealer applies consistent tape sealing to each carton, ensuring secure packaging that protects products during transportation and storage.
7.Automatic palletizing system: The palletizer stacks finished cartons neatly onto pallets according to preset patterns, improving logistics efficiency and reducing labor intensity.
8.Smooth conveyor integration: The entire line is connected through automatic conveyor systems, ensuring stable product transfer and synchronized operation between machines.
9.Flexible line configuration: The modular design allows easy adjustment of equipment layout and capacity, making it suitable for different factory spaces and production requirements.
10.Improved productivity and cost efficiency: By automating both primary packaging and end-of-line processes, the system significantly reduces labor costs, increases output, and enhances overall production efficiency.
